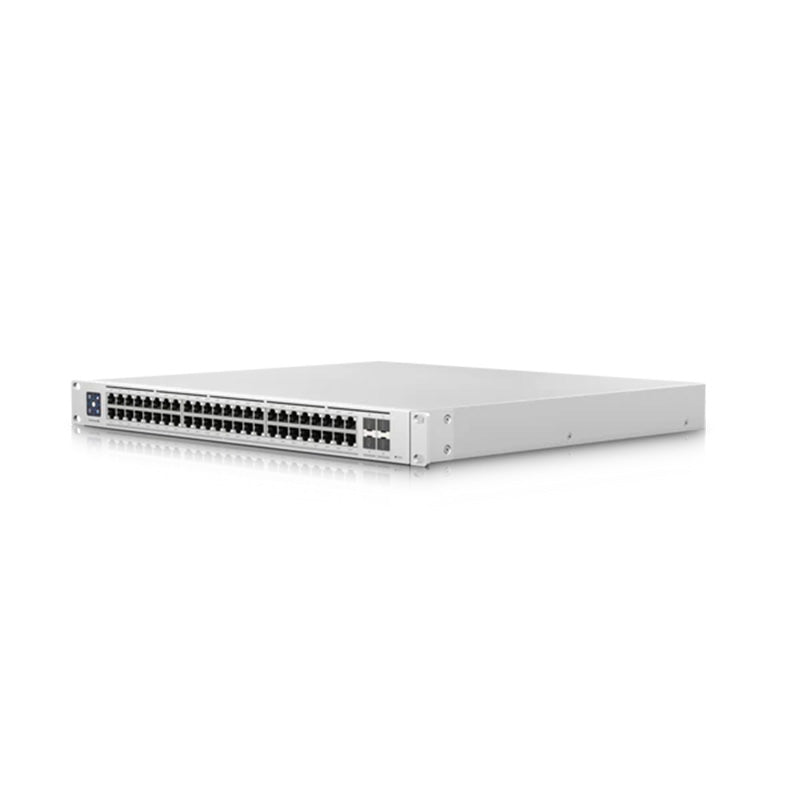

Elevate your enterprise network with the Ubiquiti UniFi Enterprise 48 PoE Switch (USW-Enterprise-48-PoE), a robust 48-port Layer 3 switch featuring 2.5 GbE PoE+ output. With a total non-blocking throughput of 160 Gbps, 720W PoE availability, and four 10G SFP+ uplinks, this SGCC steel switch offers advanced management via a 1.3" touchscreen and supports both AC and USP-RPS power methods for redundancy.
Specification | Details |
---|---|
Model | USW-Enterprise-48-PoE |
Dimensions | 442 x 44 x 400 mm (17.4 x 1.7 x 15.7") |
Weight (Without Mounting Brackets) | 6.2 kg (13.67 lb) |
Weight (With Mounting Brackets) | 6.3 kg (13.89 lb) |
Enclosure Material | SGCC steel |
Networking Interface | (48) 100/1,000/2,500 MbE RJ45 ports |
Management Interface | Ethernet In-Band |
SFP+ Interface | (4) 1/10G SFP+ ports |
PoE Interface | (48) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
Total Non-Blocking Throughput | 160 Gbps |
Switching Capacity | 320 Gbps |
Forwarding Rate | 238.095 Mpps |
Max. Power Consumption (Excluding PoE Output) | 150W |
Power Method | (1) Universal AC input, 100—240V AC, 10A Max, 50/60 Hz; (1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A |
Power Supply | AC/DC, internal, 100—240V, 10A Max |
Total Available PoE | 720W |
Max. PoE+ Wattage per Port by PSE | 34.2W |
Voltage Range (PoE Mode) | 44—57V |
Voltage Range (PoE+ Mode) | 50—57V |
Services | SMB Layer 3 PoE GbE Switch |
ESD/EMP Protection | Air: ± 16kV, Contact: ± 12kV |
LCM Display | (1) 1.3" LCM color touchscreen (Bootup animation: bootup in progress; Firmware upgrade icon: firmware upgrading) |
Button | Factory reset |
Operating Temperature | -5 to 40° C (23 to 104° F) |
Operating Humidity | 10 to 90% noncondensing |
Certifications | CE, FCC, IC |
LEDs (System) | Status |
LEDs (Ethernet) | Link/activity |
LEDs (SFP+) | Link/activity |
