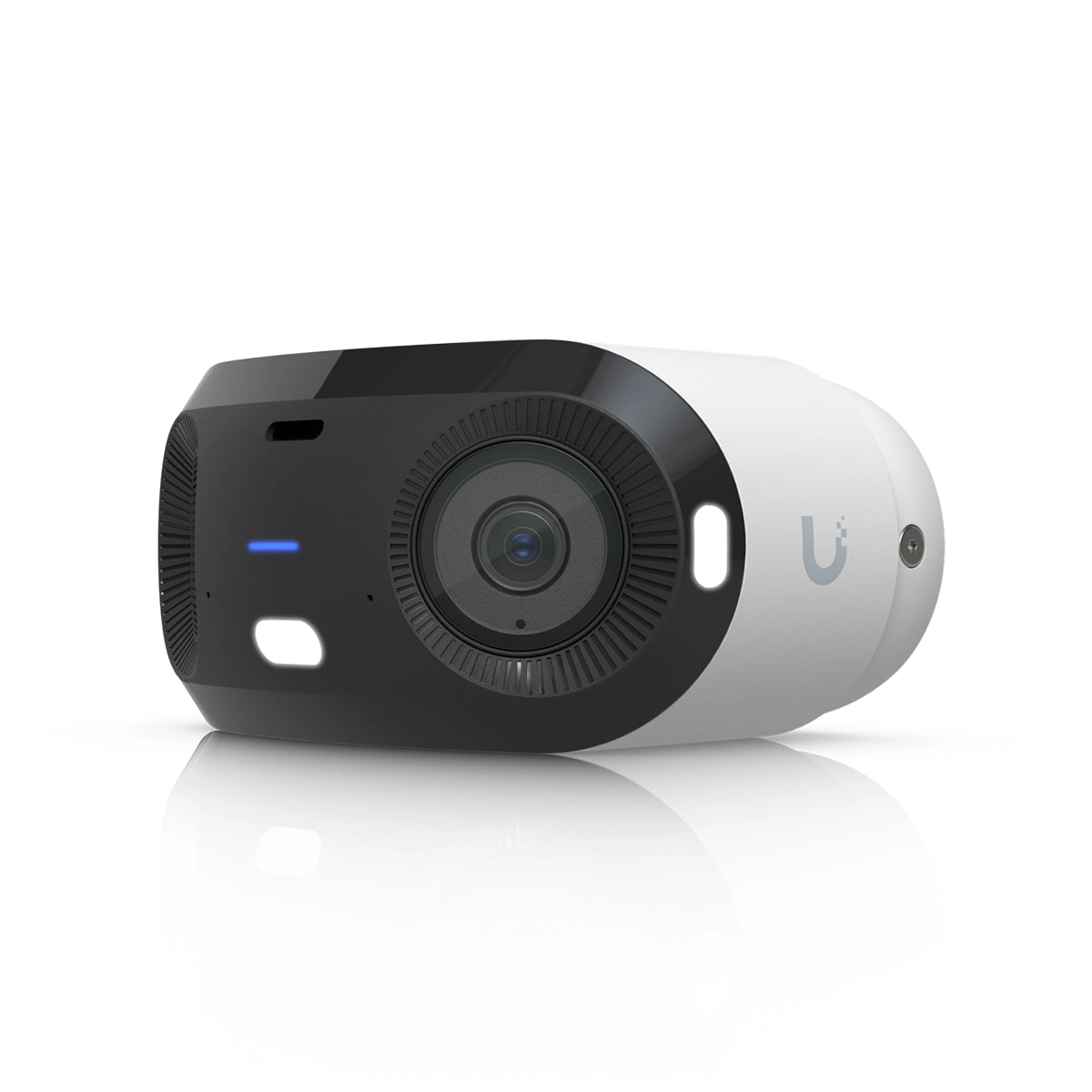

Ubiquiti UniFi Protect G6 180 (UVC-G6-180-W) – 16MP Dual Sensor 180° PoE+ Security Camera with AI Engine

The Ubiquiti UniFi Protect G6 180 (UVC-G6-180-W) is a next-generation indoor/outdoor security camera engineered for ultra-wide panoramic surveillance. Featuring a 16MP dual-sensor system with stitched 180° horizontal field of view, this PoE+ camera delivers true panoramic coverage in stunning Dual 4K resolution — all powered by a Multi-TOPS AI Engine for advanced smart detection.

Built for both residential and commercial deployments, the G6 180 combines face recognition, license plate recognition, and smart detection of people, vehicles, and animals with rugged IP66 weatherproofing and IK04 tamper resistance. The result is a single device that replaces multiple cameras while delivering AI-powered intelligence at the edge.

Key Features

• Dual Sensor 16MP Imaging: Two 1/1.8" 8MP sensors stitched into a seamless 7680 x 2160 panoramic image
• 180° Panoramic Coverage: Wide horizontal field of view (H: 180°, V: 56.7°) replaces multiple cameras with a single unit
• Multi-TOPS AI Engine: Onboard deep learning processor for real-time intelligent video analysis
• Advanced Smart Detection: Recognizes people, vehicles, and animals with high accuracy
• Face & License Plate Recognition: Enterprise-grade identity and vehicle tracking capabilities
• IR Night Vision: Built-in IR LED illumination for clear visibility up to 20 m (65 ft)
• Two-Way Audio: Built-in microphone and speaker for live communication
• Rugged Weatherproof Build: IP66-rated for indoor and outdoor use, IK04 tamper resistance
• Versatile Mounting Options: Ceiling, pole, wedge, pan adapter included; optional camera junction box, arm mount, dual mount, gang box plate
• Edge Storage: MicroSD card slot for local backup recording
• NDAA Compliant: Suitable for government, federal, and security-conscious installations

Video and Imaging Performance

• Resolution: 16MP, 7680 x 2160 (3.5:1 panoramic aspect ratio)
• Max Frame Rate: 20 FPS
• Sensor: Dual 1/1.8" 8MP image sensors
• Lens: (2) Fixed focal length
• Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, privacy masking, text overlay, HDR
• Night Mode: IR LED illumination with automatic IR cut filter

Connectivity and Networking

• Networking Interface: 10/100 MbE RJ45 port
• Power Method: PoE+ (Power over Ethernet Plus)
• Voltage Range: 37–57V DC
• UniFi Application Suite: UniFi Protect

Technical Specifications

The Ubiquiti G6 180 (UVC-G6-180-W) redefines panoramic surveillance with its dual-sensor 16MP imaging, AI-powered detection, and rugged outdoor build. A single G6 180 replaces multiple traditional cameras, giving you wider coverage, sharper detail, and smarter insights — all seamlessly integrated into the UniFi Protect ecosystem.
