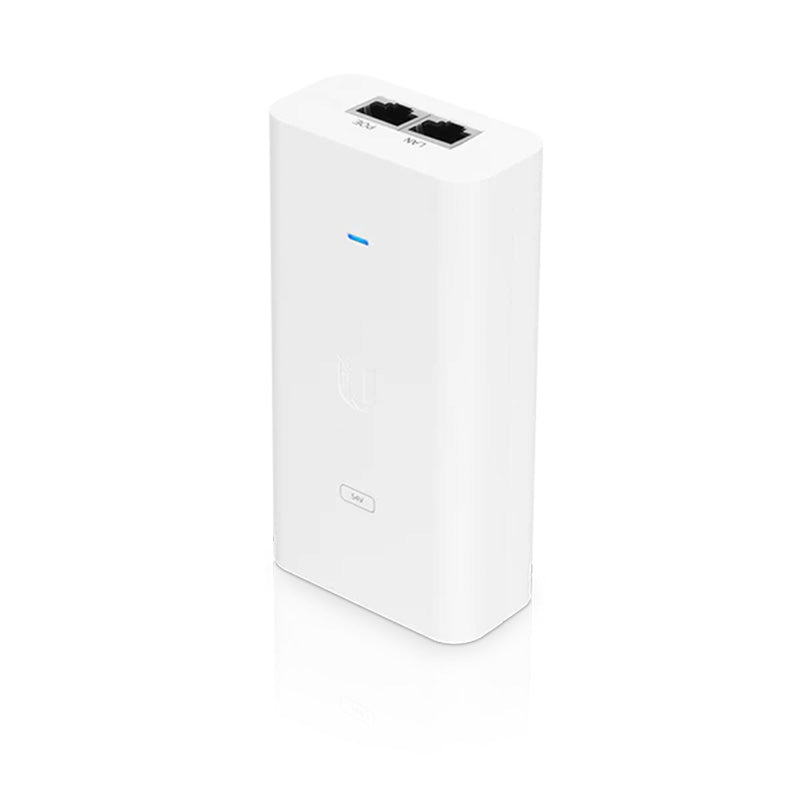

Ubiquiti UniFi EdgePoint PoE Injector, 54VDC, 80W

Ubiquiti UniFi EdgePoint PoE Injector, 54VDC, 80W

$55.46

Ubiquiti UniFi EdgePoint PoE Injector, 54VDC, 80W

$55.46
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
    • Surge protection
    • Clamping protection
    • Maximum surge discharge
    • Peak pulse current
    • AC cable with earth ground
    Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.
Specifications
Model POE-54V-80W
Dimensions 123 x 65 x 34 mm (4.84 × 2.56 × 1.34”)
Weight 299 g (10.55 oz)
Output Voltage 54VDC @ 1.5A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability No
Reset Button No
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 0.8A @ 120VAC, 0.4A @ 240VAC
Inrush Current <80A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency 87+%
Output Ripple 1% Max.
Switching Frequency 100 kHz Max.
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering
4-Pair Powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Noncondensing
AC Connector IEC-320 C6
Data IN / PoE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 μs) Power
Peak Pulse Current 36A (10/1000 μs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL
