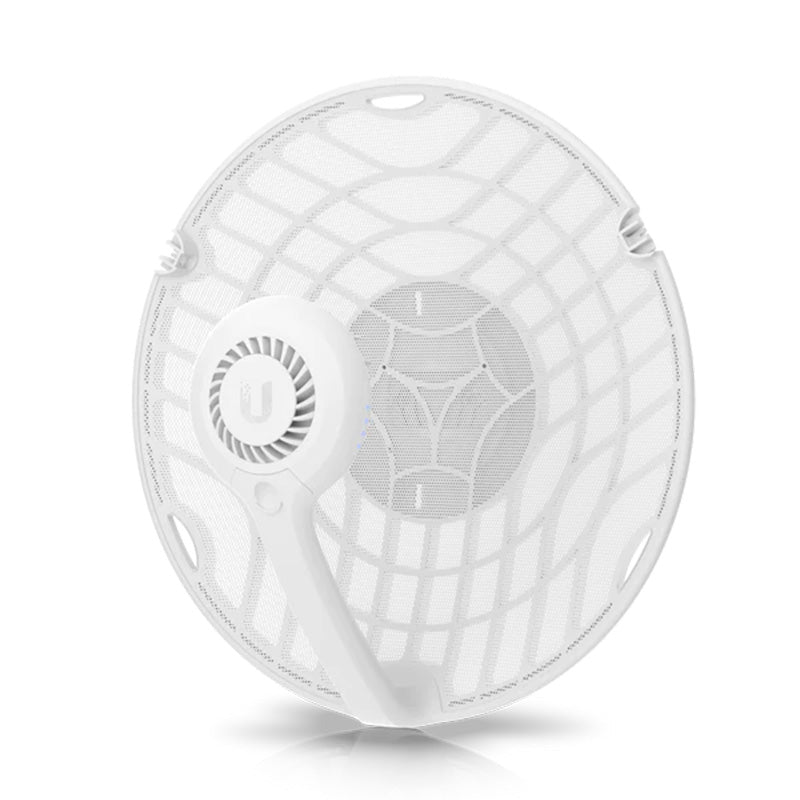

Bridge vast distances with the Ubiquiti UniFi airFiber 60 Long-Range Radio (AF60-LR), a long-range 60 GHz PtP radio system powered by Wave Technology. Offering a link range exceeding 12 km and a maximum throughput of 1.95 Gbps, this aluminum and UV-stabilized polycarbonate device features low-interference operation, GPS synchronization, and Bluetooth setup via the UISP app for seamless deployment.
Specification | Details |
---|---|
Model | AF60-LR |
Dimensions | Ø413 x 360 mm (Ø16.3 x 14.2") |
Weight (Without Mount) | 1.5 kg (3.3 lb) |
Weight (With Mount) | 2.7 kg (6 lb) |
Enclosure Materials | Aluminum, UV-stabilized polycarbonate |
Mount Material | Galvanized steel |
Mounting | Precision alignment kit (included); Pole compatibility: Ø25.4-76.2 mm (Ø1-3") |
Wind Loading | 420 N at 200 km/h (94.4 lbf at 125 mph) |
Processor | Quad-Core ARM® Cortex® A7 |
Memory | 256 MB DDR3 |
Networking Interface | (1) GbE RJ45 port |
RF Connections | Internal |
Max. Power Consumption | 18W |
Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) |
Power Supply | 48VDC, 0.65A gigabit PoE adapter (included) |
Supported Voltage Range | 48VDC ± 10% |
ESD/EMP Protection | Air/Contact: ± 24kV |
Operating Temperature | -40 to 60° C (-40 to 140° F) |
Operating Humidity | 5 to 95% noncondensing |
Certifications | FCC, IC, CE |
LEDs (Power) | Flashing white: bootup in progress; White: not connected to UISP; Blue: connected to UISP |
LEDs (Ethernet) | Flashing blue: Ethernet activity |
LEDs (GPS) | Blue: receiving at least (4) GPS satellite signals |
LEDs (60 GHz) | Blue: active connection |
OS | airOS® |
Operating Mode | PtP only |
Ubiquiti Specific Features | Wave technology, discovery utility |
Network | Bridge mode |
Services | UISP, ping watchdog, NTP client |
Tools | Antenna alignment, discovery utility, ping, traceroute, speed test |
Software Management | Bluetooth management for easy setup over UISP app, WEB UI |
Minimum Software Requirements | Any modern WEB browser/iOS or Android based smartphone |
Maximum Throughput | 1.95 Gbps |
Maximum Range | 12+ km |
Encryption | WPA2-PSK (AES) |
Operating Frequency | 57 to 71 GHz* (*Depends on regulatory region) |
GPS | Yes |
Channel Bandwidth | 2160, 1080 MHz |
