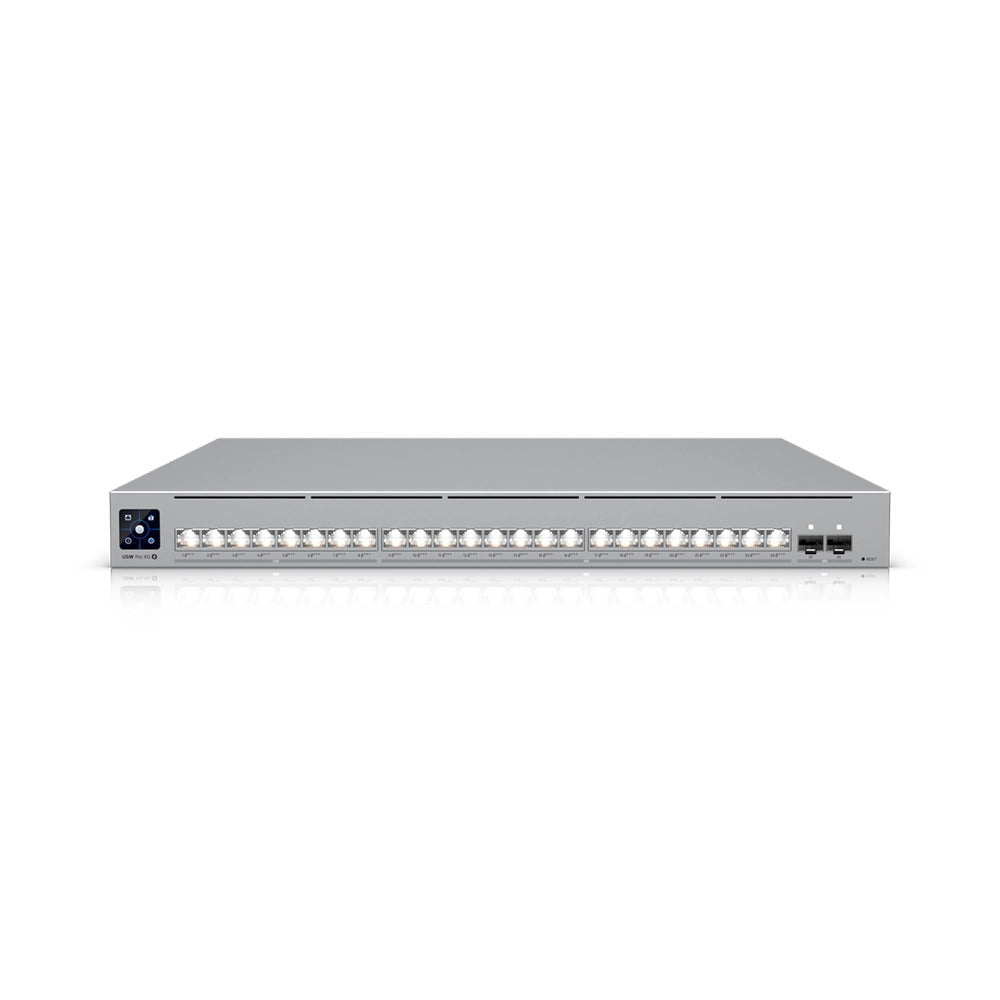

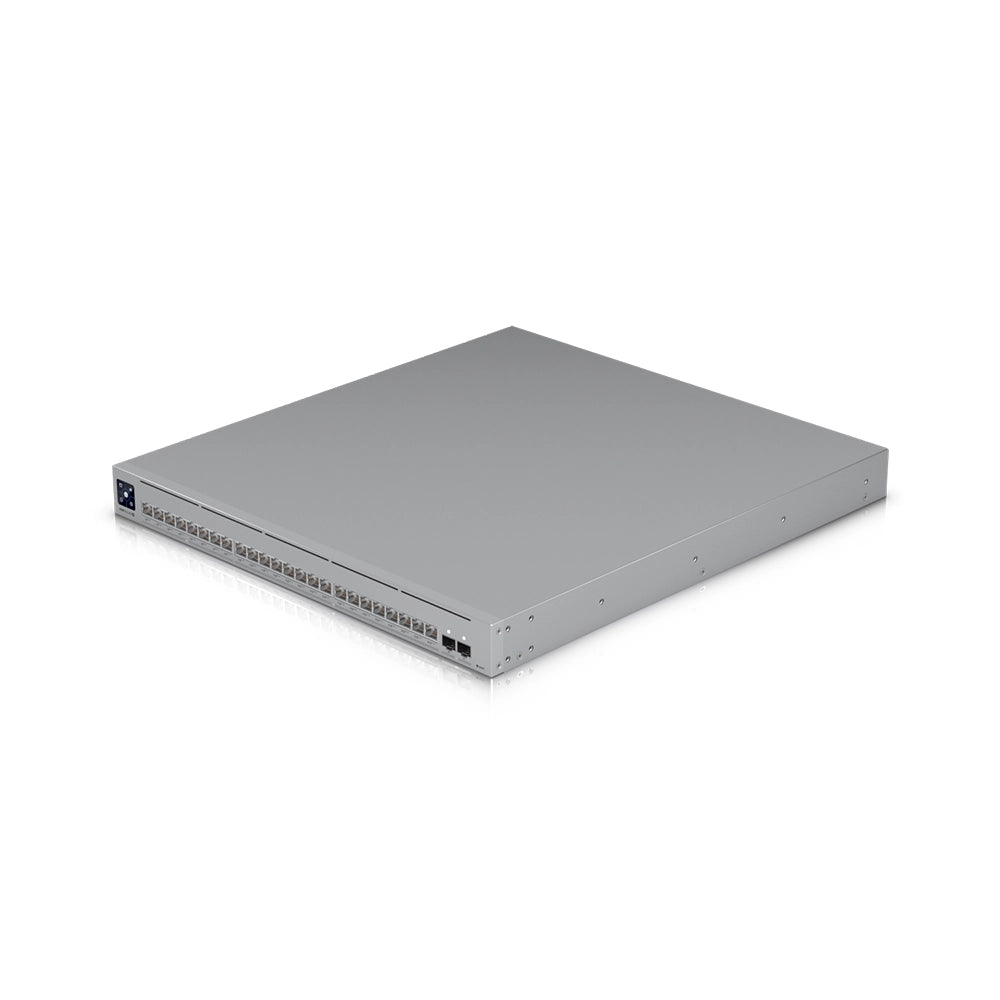

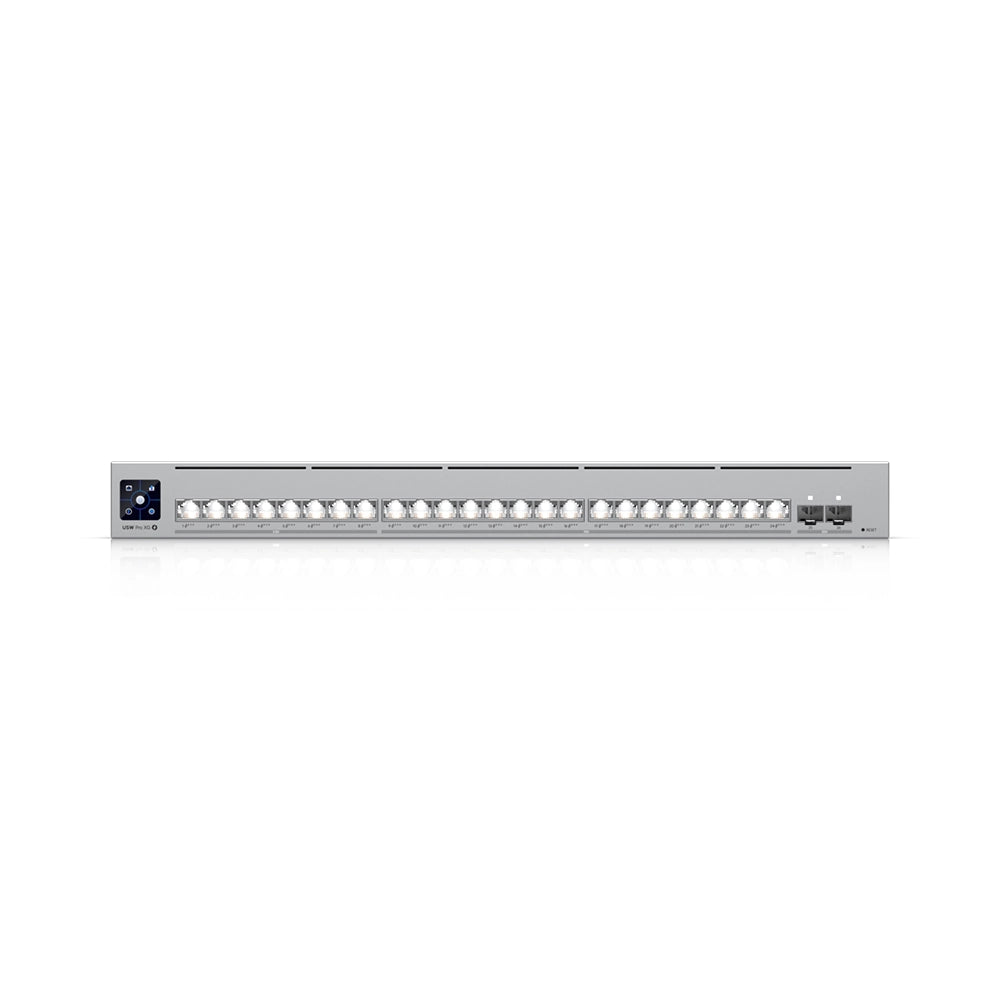

Enterprise-grade 24-port Layer 3 switch with a powerful combination of PoE+++, high-speed uplinks, and extensive Layer 2/3 features. Ideal for high-density networks, AV deployments, and critical infrastructures.
Specification | Details |
---|---|
Ports | 16 x 10GbE RJ45, 8 x 2.5GbE RJ45 (all PoE+++), 2 x 25G SFP28 |
Max PoE Output | 90W per port (PoE+++), 720W total availability |
Switching Capacity | 460 Gbps |
Forwarding Rate | 342 Mpps |
Power Supply | Internal 870W AC/DC, USP RPS DC input supported |
Max Power Consumption | 150W (no PoE), 870W (with PoE) |
Layer 3 Support | Static Routing, DHCP Server/Relay, Inter-VLAN Routing |
Pro AV Profiles | Play, Dante, NDI, Q-SYS, SDVoE, AES67, Crestron |
Form Factor | 1U Rack Mount |
Enclosure Material | SGCC Steel |
Operating Temperature | -5 to 40° C (23 to 104° F) |
Weight | 7.9 kg (17.4 lb) without brackets |
Certifications | CE, FCC, IC, NDAA Compliant |
Management Interface | Ethernet, 1.3" LCM touchscreen |
