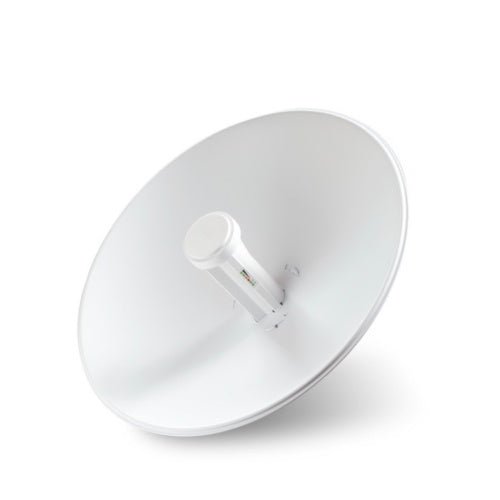

Boost your wireless connectivity with the Ubiquiti airMAX PowerBeam Bridge (PBE-M2-400), a 2.4 GHz bridge with an 18 dBi antenna delivering 150+ Mbps throughput. Encased in UV-stabilized plastic, this outdoor-ready device features a 10/100 MbE port, PoE power, and robust environmental resilience, making it perfect for point-to-point or point-to-multipoint bridging solutions.
Specification | Details |
---|---|
Model | PBE-M2-400 |
Dimensions | 420 x 420 x 289 mm (16.5 x 16.5 x 11.4") |
Weight | 1.8 kg (4 lb) |
Enclosure Material | UV-stabilized plastic |
Mounting | Pole mount kit (Included) |
Wind Loading | 278.4 N @ 120 km/h (63 lbf @ 75 mph) |
Wind Survivability | 120 km/h (75 mph) |
Networking Interface | (1) 10/100 MbE port |
Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
Power Supply | 24V, 0.5A PoE adapter (Included) |
Supported Voltage Range | 20–27V DC |
Max. Power Consumption | 6W |
ESD/EMP Protection | Air/Contact: ± 24 kV |
LEDs | (1) Power, (1) LAN, (4) WLAN |
Signal Strength LEDs | Software-adjustable to correspond to custom RSSI levels |
RoHS Compliance | Yes |
Salt Fog Test | IEC 68-2-11 (ASTM B117); Equivalent: MIL-STD-810 G Method 509.5 |
Vibration Test | IEC 68-2-6 |
Temperature Shock Test | IEC 68-2-14 |
UV Test | IEC 68-2-5 at 40° C (104° F); Equivalent: ETS 300 019-1-4 |
Wind-Driven Rain Test | ETS 300 019-1-4; Equivalent: MIL-STD-810 G Method 506.5 |
Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
Ambient Operating Humidity | 5 to 95% noncondensing |
Certifications | FCC, IC, CE |
Gain | 18 dBi |
Operating Frequency | 2405 - 2475 MHz |
Max. VSWR | 1.5:1 |
Channel Sizes | 5/8/10/20/30/40 MHz |
Polarization | Dual linear |
