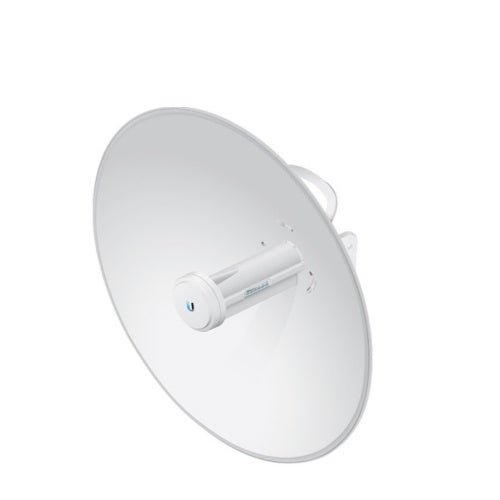

Ubiquiti Networks airMAX PowerBeam AC 5 GHz Gen2 High Performance Bridge

Ubiquiti Networks PowerBeam AC Gen2 Overview With tighter beamwidth and a dedicated Wi-Fi radio for management, the airMAX PowerBeam AC 5 GHz Gen2 High Performance Bridge from Ubiquiti Networks offers a more reliable long-distance point-to-point...
Read More
$399.99
$399.99
Subtotal: $399.99
Please hurry! Only 2 left in stock

Free Shipping

Estimated to be delivered within 3-4 days

Free Returns

Free return in 90 days

Ubiquiti Networks airMAX PowerBeam AC 5 GHz Gen2 High Performance Bridge

Ubiquiti Networks airMAX PowerBeam AC 5 GHz Gen2 High Performance Bridge

$399.99

Ubiquiti Networks airMAX PowerBeam AC 5 GHz Gen2 High Performance Bridge

$399.99

Ubiquiti Networks PowerBeam AC Gen2 Overview


With tighter beamwidth and a dedicated Wi-Fi radio for management, the airMAX PowerBeam AC 5 GHz Gen2 High Performance Bridge from Ubiquiti Networks offers a more reliable long-distance point-to-point connection. This radio is designed to filter out noise to reduce interference in areas congested with multiple RF signals at a maximum data transfer rate of over 450 Mb/s. Setup is simple thanks to fully adjustable hardware designed to make it easy to adjust the mounting bracket ±20° along with the ability to detach the antenna feed with the push of a button.

Improved Noise Immunity

The PowerBeam 5AC Gen2 directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam 5AC Gen2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals at the same or similar frequencies.

Integrated Design

Ubiquiti's InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring a high-performance and innovative mechanical design, the PowerBeam AC Gen2 is versatile and cost-effective to deploy.

Software

Powerful Wireless Features
  • Access Point PtMP airMAX Mixed Mode
  • airMAX ac Protocol Support
  • Long-Range Point-to-Point (PtP) Link Mode
  • Selectable Channel Width
  • PtP: 10/20/30/40/50/60/80 MHz
  • PtMP: 10/20/30/40 MHz
  • Automatic Channel Selection
  • Transmit Power Control: Automatic/Manual
  • Automatic Distance Selection (ACK Timing)
  • Strongest WPA2 Security
Usability Enhancements
  • airMagic Channel Selection Tool
  • Redesigned User Interface
  • Dynamic Configuration Changes
  • Instant Input Validation
  • HTML5 Technology
  • Optimization for Mobile Devices
  • Detailed Device Statistics
  • Comprehensive Array of Diagnostic Tools, including RF Diagnostics and airView Spectrum Analyzer

Advanced RF Analytics
airMAX ac devices feature a multi-radio architecture to power an RF analytics engine. An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 5 GHz spectrum and every received symbol to provide you with advanced RF analytics.

Real-Time Reporting
airOS 8 displays the following RF information:
  • Persistent RF Error Vector Magnitude (EVM) constellation diagrams
  • Signal, Noise, and Interference (SNI) diagrams
  • Carrier to Interference-plus-Noise Ratio (CINR) histograms

Spectral Analysis
airView allows you to identify noise signatures and plan your networks to minimize noise interference. airView performs the following functions:
  • Constantly monitors environmental noise
  • Collects energy data points in real-time spectral views
  • Helps optimize channel selection, network design, and wireless performance

In airView, there are three spectral views, each of which represents different data: waveform, waterfall, and ambient noise level. airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys.

UMobile App

Accessing airOS via Wi-Fi
The UMobile App provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android). UMobile allows you to set up, configure, and manage the PowerBeam 5AC Gen2. It offers the following options once you're connected or logged in to the device:

  • Check link status information or the basic configuration settings of the PowerBeam 5AC Gen2
  • Change or update the existing configuration of the PowerBeam 5AC Gen2
  • Access tools for initial installation and configuration of the PowerBeam 5AC Gen2
  • Back up or update the configuration, upload new firmware, reboot the device, reset the device to factory defaults, access the airOS UI in the web browser, or disconnect from the PowerBeam 5AC Gen2
