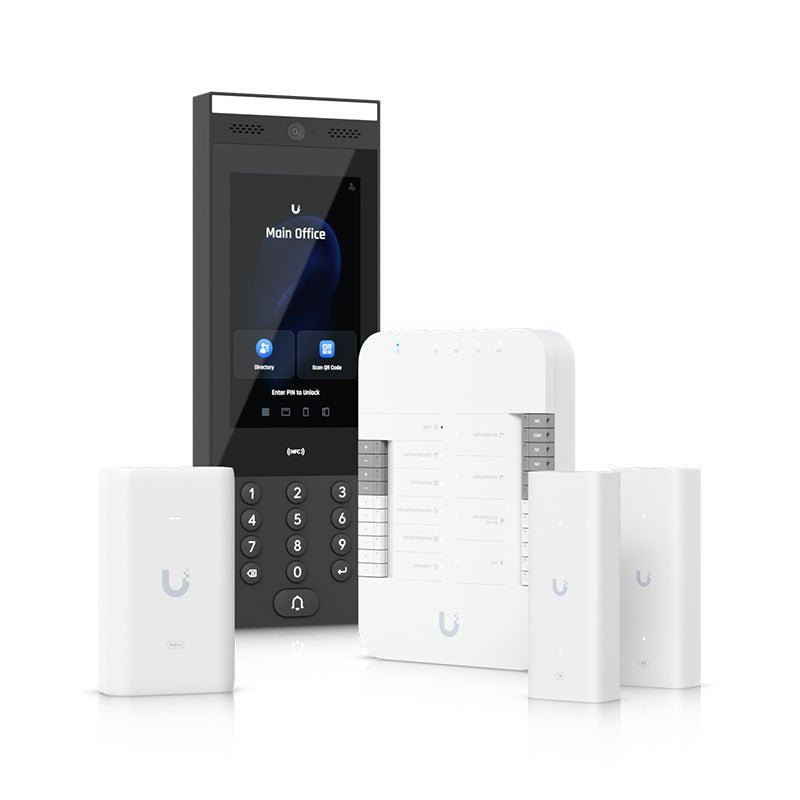

Secure and manage vehicle gate access with the Ubiquiti Gate Access Starter Kit (UA-SK-Gate), a comprehensive solution featuring an intelligent Gate Hub and Intercom. Control your gate via the connected Intercom and enable License Plate Unlock when paired with a compatible Protect AI camera,* offering seamless integration with UniFi Access and Protect for advanced gate security.
Specification | Details |
---|---|
UA-Hub-Gate | |
Dimensions | 175 x 126 x 26 mm (6.9 x 5 x 1") |
Weight | 460 g (1 lb) |
Enclosure Material | Polycarbonate |
Mounting | DIN-rail (Included) |
Networking Interface | (5) 10/100/1000 Base-T |
Power Method | PoE++ |
Max. Power Consumption | Without PoE output: 22W; With PoE output: 50W |
PoE Input | 50V DC, 1A |
PoE Output | PoE passthrough, (4) PoE, 50V DC, Max. 28W |
Button | (1) Factory-reset |
Digital Input | Gate exit request, gate position, side door exit request, side door position, emergency |
Dry Output Relay | (2) Operator: 30V DC, up to 1A; (1) Aux: 30V DC, up to 1A |
Powered Output Relay | Side door lock: 12V DC, up to 1A |
Operating Environment | Indoor use only; Outdoor use with waterproof junction box |
Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
Ambient Operating Humidity | 5 to 90% noncondensing |
Certifications | CE, FCC, IC |
LEDs (PoE In) | Steady white: Pending adoption; Steady blue: Adopted; Blinking white/blue: Upgrading firmware |
LEDs (PoE Out) | Off: No connection/data; Steady white: Connected with data link |
LEDs (Input Terminals) | Off: No wire; Steady white: Wire connected; Blinking white: Active signal |
LEDs (Output Relays) | Off: No wire; Steady white: Wire connected; Blinking white: Relay triggered |
UA-Intercom | |
Dimensions | 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1") |
Weight (Device) | 965 g (2.1 lb) |
Weight (Bracket) | 445 g (1 lb) |
Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
Mount Material | Powder-coated stainless steel |
Mounting | Wall mount, gooseneck pedestal adapter (Included); Surface angle mount, flush mount, sunshield kit (Optional) |
Weatherproofing | IP65 |
Networking Interface | (1) GbE RJ45 port |
Connectivity | Bluetooth 4.2, NFC |
Power Method | PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU |
Supported Voltage Range | 48V DC |
Max. Power Consumption | 13W |
ESD/EMP Protection | Air: ±15kV, Contact: ±8kV |
Sensors | Proximity sensor, ALS sensor |
Camera | 3264 x 2448, 8 MP; H: 79.4°, V: 97.5°, D: 118.2° |
Display | 177 mm (7") diagonal, 1024 x 600 (16:9), Max. 1000 nits |
Touch Screen Technology | Capacitive multi-touch |
Microphone | Yes |
Speaker | (1) 4 ohm, 2W |
LEDs | (1) LCM low temp indicator (orange), (1) LED floodlight, (13) Keypad LED backlight |
Button | (1) Factory-reset |
NFC Frequency | 13.56 MHz |
NFC Read Range | < 30 mm |
NFC Standards | ISO 14443A, 14443B, 15693 |
NFC Technology | NFC Tag 1,2,3,4,5; MIFARE Classic, Plus, Ultralight, DESFire |
Ambient Operating Temperature | Device: -30 to 60° C (-22 to 140° F); Display: -25 to 60° C (-13 to 140° F)* |
Operating Environment | Outdoor use |
Ambient Operating Humidity | 5 to 90% noncondensing |
UL 294 Level | Destructive attack: Level I; Line security: Level I; Endurance: Level I; Standby power: Level I |
Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
UACC-Extender-2Wire-PoE-Tx/Rx | |
Dimensions | 40 x 105 x 25 mm (1.6 x 4.1 x 1") |
Weight (PoE In) | 77 g (2.7 oz) |
Weight (PoE Out) | 79 g (2.8 oz) |
Enclosure Material | Polycarbonate |
Mounting Material | Polycarbonate |
Networking Interface | (1) 10/100 MbE, (1) Homeplug AV |
Power Method | PoE++ |
Max. Power Consumption | 3W (Without PoE output) |
PoE Input | (1) PoE++, 50V DC, Max. 1.2A |
PoE Output | (1) PoE+, 48V DC, 0.72A |
ESD/EMP Protection | Air: ±8kV, Contact: ±4kV |
LED | White |
Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
Ambient Operating Humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
U-PoE++ | |
Model | U-PoE++ |
Dimensions | 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") |
Weight | 210 g (7.4 oz) |
Output Voltage | 48V DC @ 1.25A |
Gigabit LAN Port | Yes |
Rated Voltage | 100—240V AC @ 50/60Hz |
Input Current | 1.3A @ 120V AC; 0.75A @ 230V AC |
Inrush Current | <100A peak @ 120V AC; <200A peak @ 230V AC |
Efficiency | 85+% |
Output Ripple | 1% max. |
Switching Frequency | 65 kHz |
Line Regulation | ≤ 1% |
Load Regulation | ≤ 3% |
4-Pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
AC Connector | IEC-320 C6 |
Data In / PoE | RJ45 shielded socket |
Surge Protection | Difference and common mode |
Clamping Protection | 11V data, 60V power |
Max. Surge Discharge | 1500A (8/20 μs) power |
Peak Pulse Current | 36A (10/1000 μs) data |
Shunt Capacitance | <5 pF data |
Response Time | <1 ns |
Power Supply | AC/DC |
Supported Voltage Range | 100—240V AC |
Max. PoE+ Wattage per Port by PSE | 60W |
Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
Storage Temperature | -30 to 70°C (-22 to 158° F) |
Ambient Operating Humidity | 10 to 95% noncondensing |
Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS |
Software | |
Management Application | UniFi Access: Version 2.1.5 and later; UniFi Protect: Version 4.0.33 and later |
Compatibility | |
Compatible Cameras | UVC-AI-Bullet, UVC-AI-DSLR, UVC-AI-Pro, UVC-AI-Theta |
