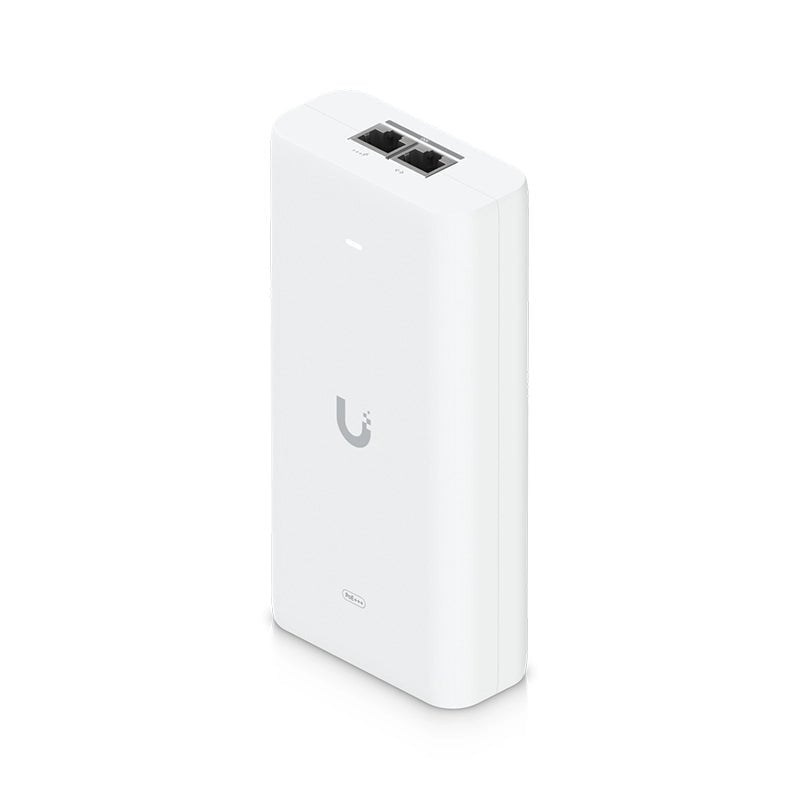

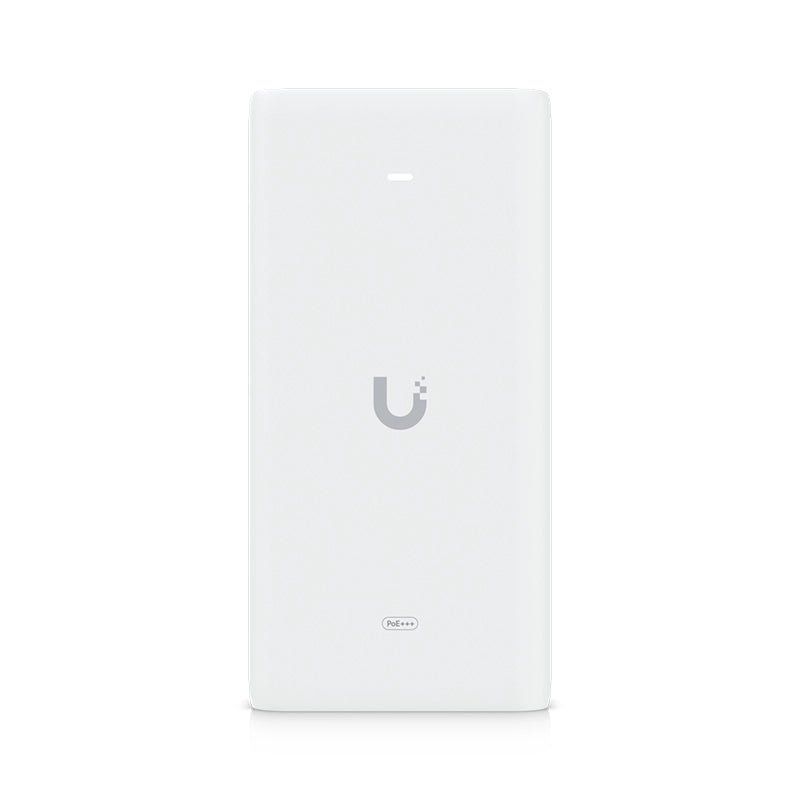

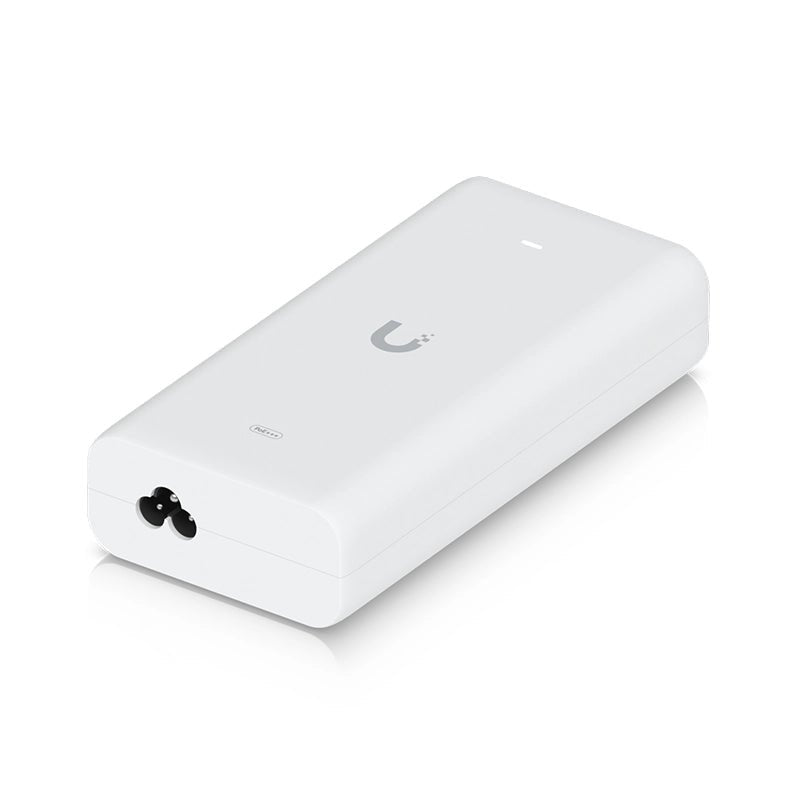

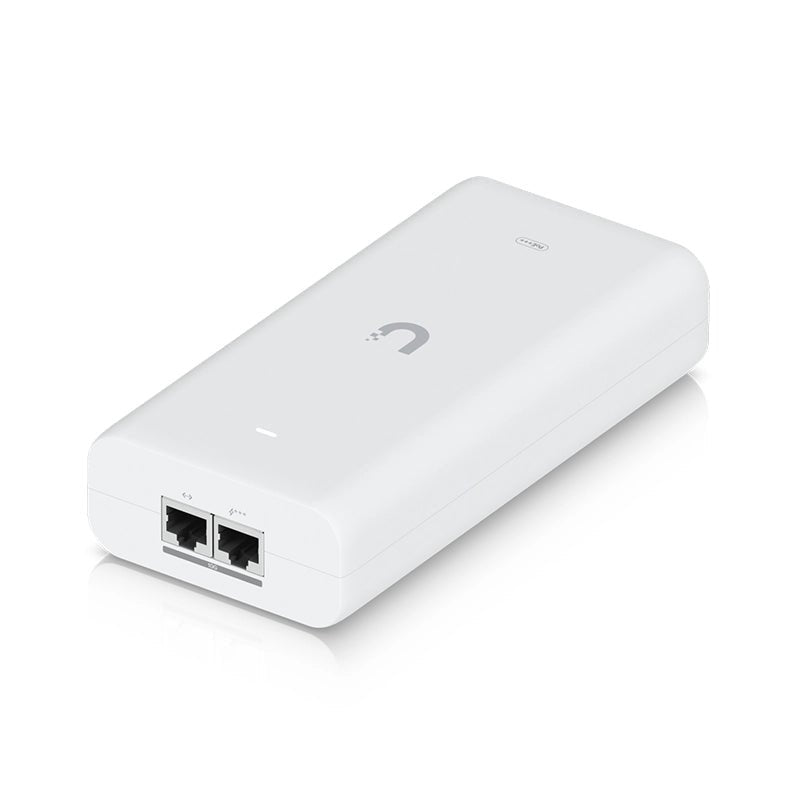

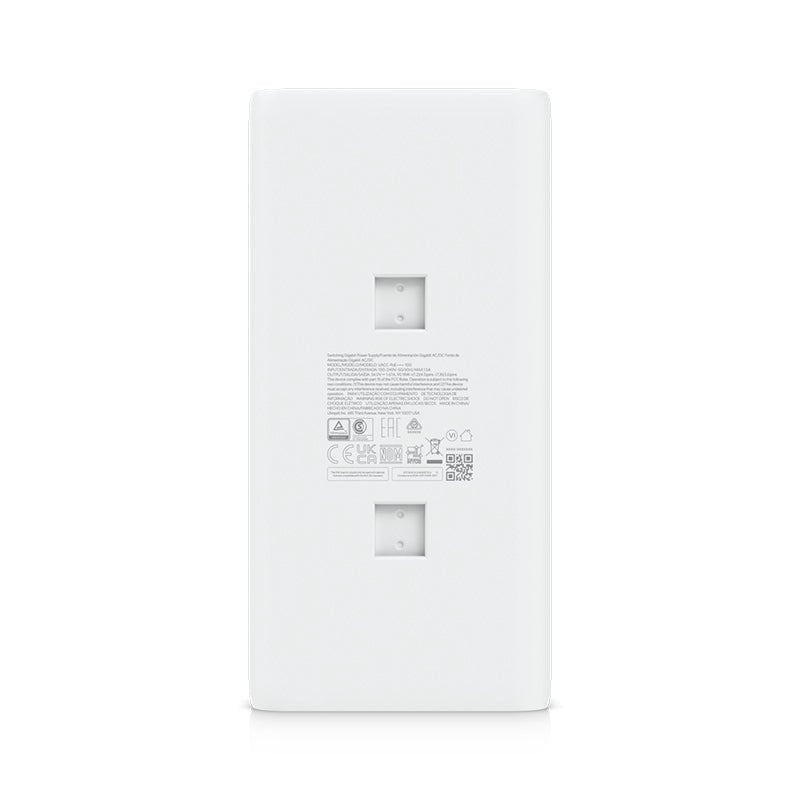

The Ubiquiti 10G PoE+++ Adapter (UACC-PoE+++-10G) is a high-power, professional-grade injector designed to deliver up to 90W PoE+++ (802.3bt Type 3) to UniFi and third-party devices requiring higher wattage. Ideal for powering PTZ cameras, high-performance access points, bridges, and other PoE-intensive equipment.
Along with robust surge, peak pulse, and overcurrent protection, the adapter provides a Multi-Gigabit 10G-capable LAN connection, ensuring reliable bandwidth for demanding deployments. It features a sturdy design supporting wall mount, DIN rail, and floating mount* installations, making it perfect for both enterprise and industrial environments.
| Specification | Details |
|---|---|
| Model | UACC-PoE+++-10G |
| Dimensions | 164.5 x 71 x 42 mm (6.5 x 2.8 x 1.7") |
| Weight | 372 g (13.1 oz) |
| Output Power / PoE | 54V DC @ 1.67A (up to 90W PoE+++) |
| 4-Pair Power Output | Pins 1,2,4,5 (+), 3,6,7,8 (−) |

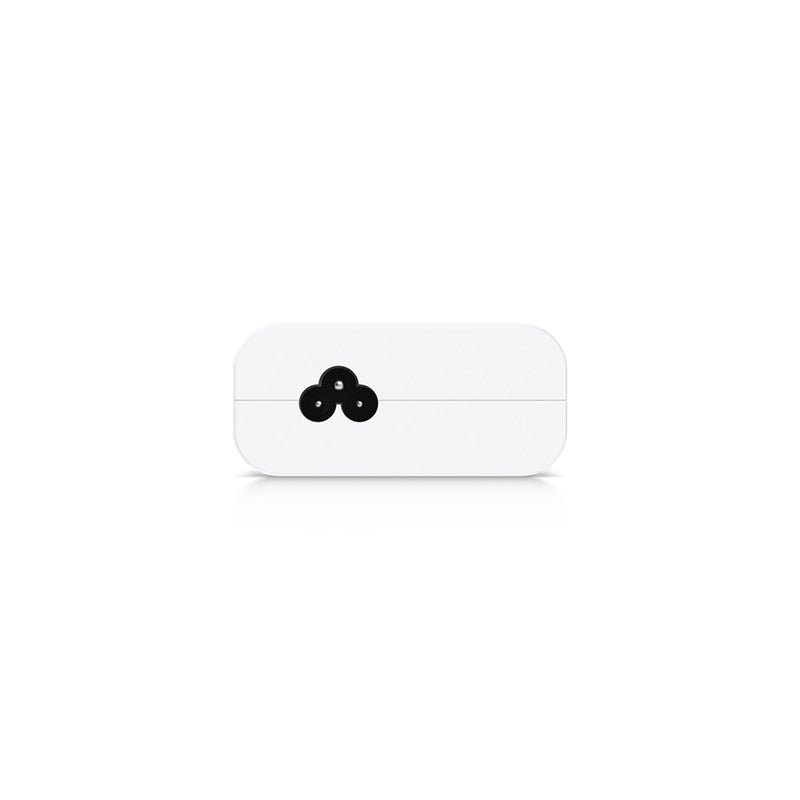

| Input Voltage / Frequency | 100–240V AC @ 50/60 Hz |
| Input Current / Inrush | 1.5A max, <120A peak @ 230V AC inrush |

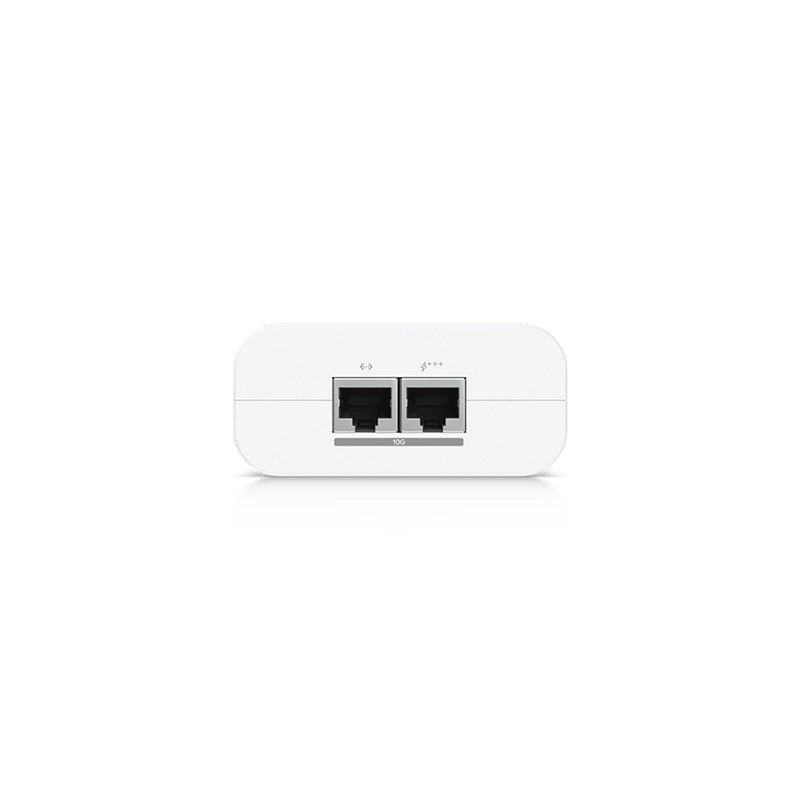

| LAN Port | 10G-capable shielded RJ45 port |
| Efficiency / Switching Frequency | >88% efficiency, 65 kHz switching frequency |
| Surge Protection | Clamping: 11V (data), 60V (power) Max surge discharge: 1500A (8/20 μs) Peak pulse: 36A (10/1000 μs) Common & differential mode protection |
| Regulation / Ripple | Output ripple: ≤1% Line regulation: ≤2% Load regulation: ≤5% |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -30 to 70°C (-22 to 158°F) |
| Operating Humidity | 10 to 95% noncondensing |
| Certifications | NDAA • CE • FCC • IC • UL • UKCA • KC • CCC • RoHS |
