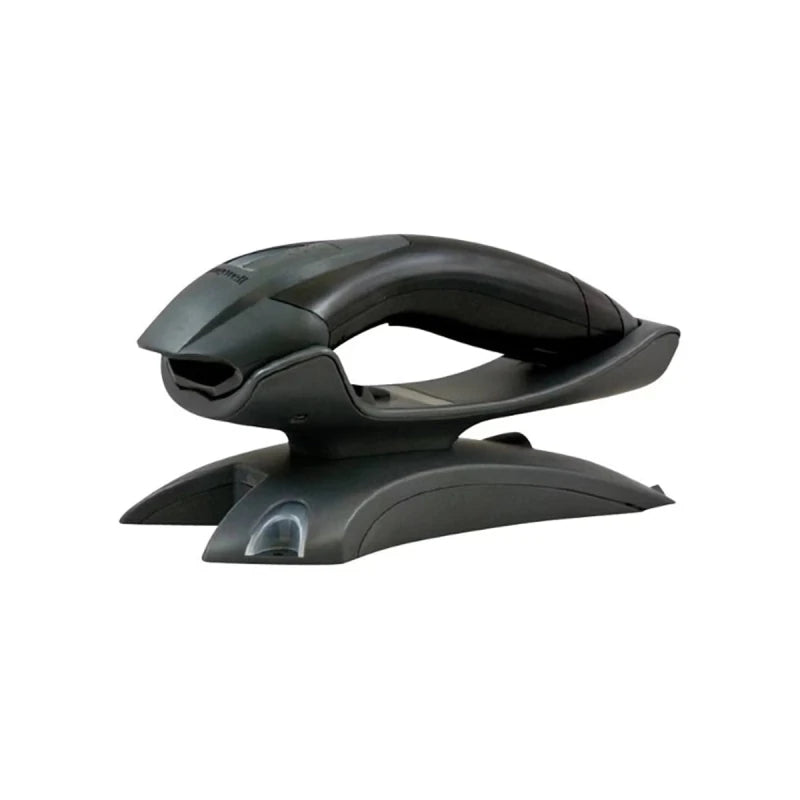

Honeywell Voyager 1202g – Wireless Bluetooth 1D Laser Barcode Scanner with Charging Base and Stand

The Honeywell Voyager 1202g is a cordless single-line laser barcode scanner that combines Bluetooth® wireless freedom with the proven reliability of the world-renowned Voyager scanner family. Engineered for fast, accurate 1D barcode scanning, the 1202g is the ideal solution for retail checkouts, healthcare facilities, warehouses, and light manufacturing environments where mobility and precision are essential.

Equipped with a field-replaceable lithium-ion battery, an intuitive paging system, and automatic interface configuration, the Voyager 1202g minimizes downtime, accelerates installation, and boosts daily productivity across every workstation it powers.

Key Features and Benefits

• Bluetooth® Wireless Freedom: Class 2, v2.1 radio delivers reliable scanning up to 10 meters (33 feet) from the base, with line-of-sight ranges reaching 30 meters (100 feet)
• Long-Lasting Battery: Lithium-ion power source provides 12+ hours of continuous use and up to 45,000 scans per full charge
• Tool-Free Battery Swap: Field-replaceable battery can be exchanged in seconds — no tools, no downtime
• Damaged Barcode Recovery: Reads smudged, faded, poorly printed, and damaged 1D codes with ease
• Plug-and-Play Setup: Automatic interface detection eliminates time-consuming programming barcode scanning
• Built-In Paging System: One-button paging on the base helps locate misplaced scanners via audible beeps and flashing indicators
• Flexible Mounting Base: Charging base supports both desk and wall mounting for any workstation layout
• Remote MasterMind™ Compatible: Centralized device management reduces total cost of ownership

Scanning Performance

• Scanner Type: Single-line laser, 1D barcode
• Scan Rate: 100 scans per second
• Symbologies Supported: All standard 1D and GS1 DataBar codes
• Resolution Range: 5 mil to 20 mil (Code 39)
• Depth of Field:
  • 5 mil (Code 39): 27 mm – 151 mm (1.1" – 5.9")
  • 7.5 mil (Code 39): 16 mm – 216 mm (0.6" – 8.5")
  • 10.4 mil (Code 39): 0 mm – 277 mm (0" – 10.9")
  • 13 mil (UPC-A): 0 mm – 311 mm (0" – 12.2")
  • 20 mil (Code 39): 0 mm – 367 mm (0" – 14.4")
• Field of View: 30° horizontal
• Reading Angles: 60° skew, 60° pitch
• Minimum Print Contrast: 10%
• Maximum Ambient Light: 70,000 lux

Durability and Build Quality

• Drop Resistance: Survives 30 drops to concrete from 1.5 m
• Ingress Protection: IP42-rated against dust and splashes
• Shock-Mounted PCB: Single-board design enhances impact resistance
• Scratch-Resistant Window: Protected glass window for long-term clarity
• Recessed Trigger Button: Rubber co-mold protection minimizes accidental damage

Connectivity and Interfaces

• Wireless Technology: Bluetooth® Class 2, v2.1
• Host Interfaces: Serial, USB, Keyboard Wedge
• Included Cable: USB Type A, 3 m straight
• Stand: Goose Neck Stand included

Technical Specifications

What's in the Box

• 1 × Honeywell Voyager 1202g Single-Line Laser Scanner
• Charge & Communication Base
• USB Type A 3 m Straight Cable
• Goose Neck Stand
• Product Documentation

The Honeywell Voyager 1202g brings together cordless mobility, rugged durability, and proven Voyager scanning performance in a single, productivity-boosting package — making it the go-to wireless barcode scanner for modern retail, healthcare, and industrial environments.
