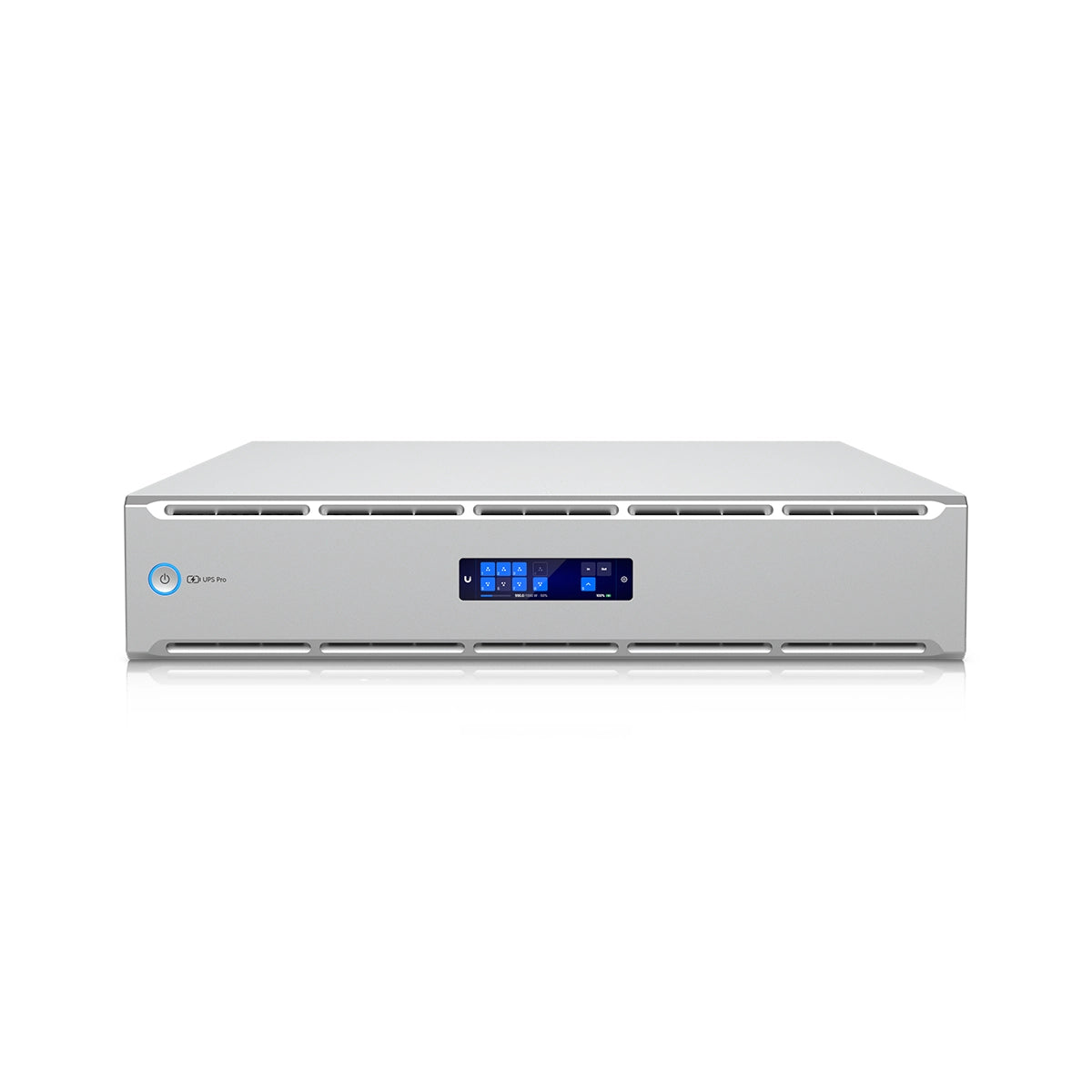

Ubiquiti UPS 2U Pro (UPS-2U-Pro) – UniFi-Managed 1.92kVA Rackmount UPS with Pure Sine Wave & 8 Controllable Outlets

The Ubiquiti UPS 2U Pro (UPS-2U-Pro) is a professional-grade, UniFi-managed 1.92kVA rackmount uninterruptible power supply engineered to deliver clean, reliable backup power to your entire network rack. Featuring pure sine wave output, 8 individually controllable outlets with per-port power monitoring and remote power cycling, and a field-replaceable 720Wh battery, this UPS is built for data centers, enterprise networks, MDF/IDF closets, and mission-critical UniFi deployments.

Delivering up to 22 minutes of runtime at half load (960W) and full Graceful Shutdown support for UNVR and UNAS devices, plus NUT compatibility for third-party equipment, the UPS-2U-Pro provides bulletproof protection and total remote control — all seamlessly integrated into the UniFi ecosystem.

Key Features and Benefits

• 1.92kVA / 1920W Capacity: Substantial power backup for full rack deployments
• Pure Sine Wave Output: Clean, stable power ideal for sensitive networking, servers, and audio/video equipment
• 8 Individually Controllable Outlets: Per-port power monitoring and remote power cycling for granular control
• Field-Replaceable 720Wh Battery: Easy long-term maintenance with hot-swappable design
• Graceful Shutdown Support: Native compatibility with UNVR and UNAS for safe device shutdowns during outages
• NUT Compatibility: Interfaces with third-party servers and equipment using the Network UPS Tools protocol
• UniFi-Managed: Full integration with the UniFi ecosystem for centralized monitoring and control
• Line Interactive Topology: Automatic voltage regulation and rapid transfer times (6 ms typical / 10 ms max)

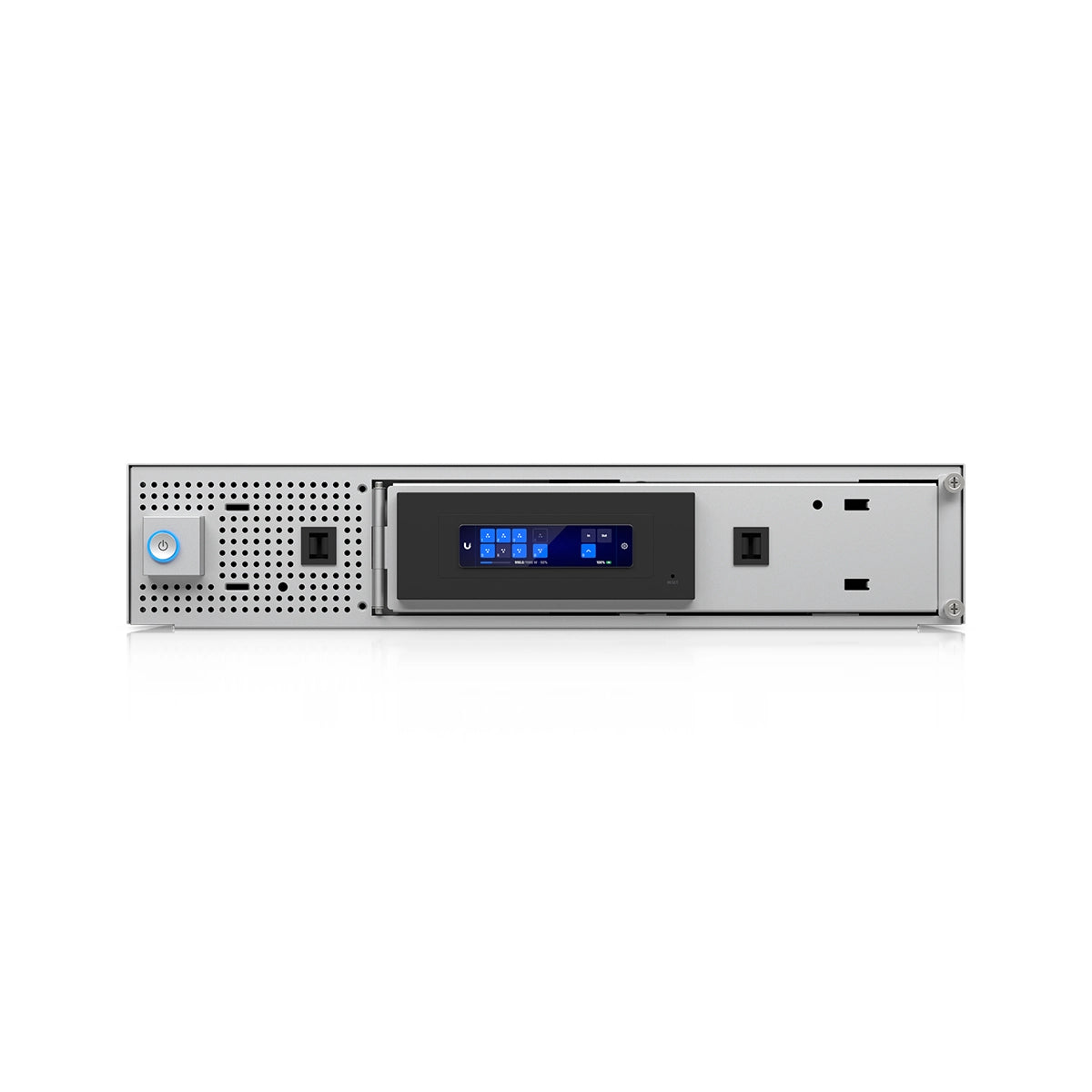

• 3.7" Touchscreen Display: Real-time status, monitoring, and quick setup at a glance
• Emergency Power Off (EPO): Instant safety shutoff for critical situations
• NDAA Compliant: Suitable for government and security-conscious deployments
• Compact 2U Rackmount Form: Fits standard networking racks with a rugged galvanized steel enclosure

Runtime Performance

• Full Load Runtime: 9 minutes at 1920W
• Half Load Runtime: 22 minutes at 960W
• Battery Charging Time: 8 hours to recover to 90% capacity
• Battery Type: (1) Lead Acid 72V, 10Ah

Connectivity and Power

• Networking:
  • (1) 100/10 MbE port for network connection
  • (2) GbE ports for surge protection in/out
• Power Input: (1) OVC II AC in — NEMA 5-20P

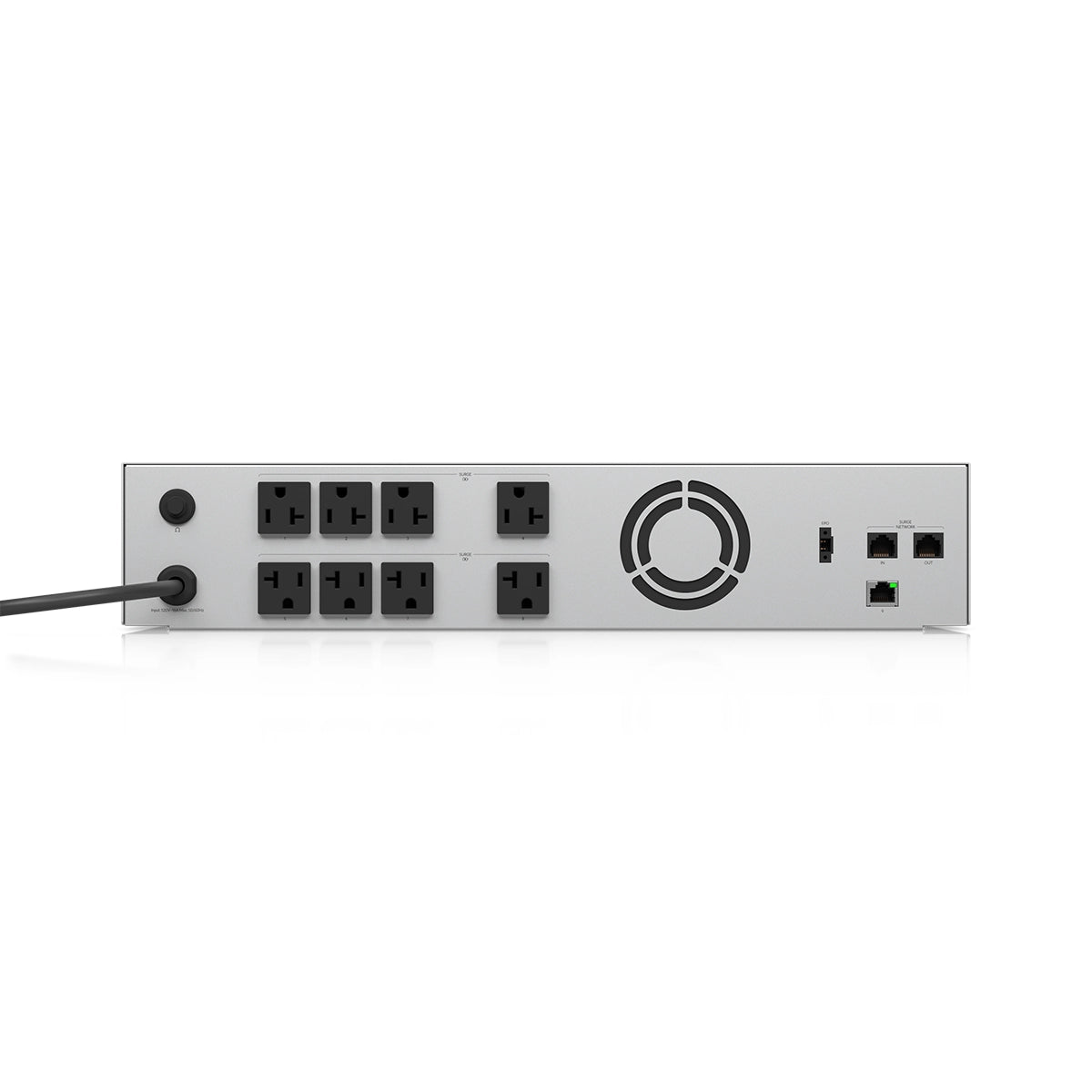

• Power Outlets: (8) NEMA 5-20R battery backup + surge protection
• Power Method: (1) TN system, 120V AC, 16A Max., 50/60 Hz

Electrical Specifications

• Capacity: 1920VA / 1920W
• UPS Type: Line Interactive
• Input Voltage Range: 89–145V AC
• Nominal Input/Output Voltage: 120V AC
• Frequency Range (AC Mode): 50/60 Hz ±5 Hz (Auto sensing)
• Frequency Range (Battery Mode): 60 Hz ±1 Hz
• AC Voltage Regulation: ±1.5% (Battery mode)
• Transfer Time: 6 ms typical / 10 ms max. (Battery mode)
• Wave Form: Pure sine wave (Battery mode)
• Overload Protection (On-Line Mode): 103–120% for 5 min / 120–150% for 10 sec / 150% for 1 sec
• Overload Protection (Battery Mode): 103–120% for 1 min / 120–150% for 10 sec / 150% for 0.5 sec
• Short Circuit Protection: Breaker, 250V AC, 20A

LED Status Indicators

• Off: Device not turned on
• Flashing White: Initializing / factory default
• Steady White: Waiting for adoption
• Steady Blue: Device adopted and working
• Flashing Blue: Battery mode
• Alternating White/Blue: Firmware upgrading
• Rapid Flashing Blue: Locate
• Steady Red: Warning
• Flashing Red: Low battery

Technical Specifications

Software & Application Requirements

• UniFi OS: Version 5.1.25 or later (Version 4.4.3+ required for Graceful Shutdown)
• UniFi Network: Version 10.5.67 and later
• UniFi Mobile (Android): Version 10.39.3 and later
• UniFi Mobile (iOS): Version 10.36.1 and later

The Ubiquiti UPS 2U Pro (UPS-2U-Pro) is a mission-critical power protection solution that brings UniFi-native intelligence to your rack. With 1.92kVA of clean pure sine wave power, 8 remotely controllable outlets, per-port monitoring, graceful shutdown support, and full UniFi integration, it's the smart, professional-grade UPS built to safeguard your entire network infrastructure.
