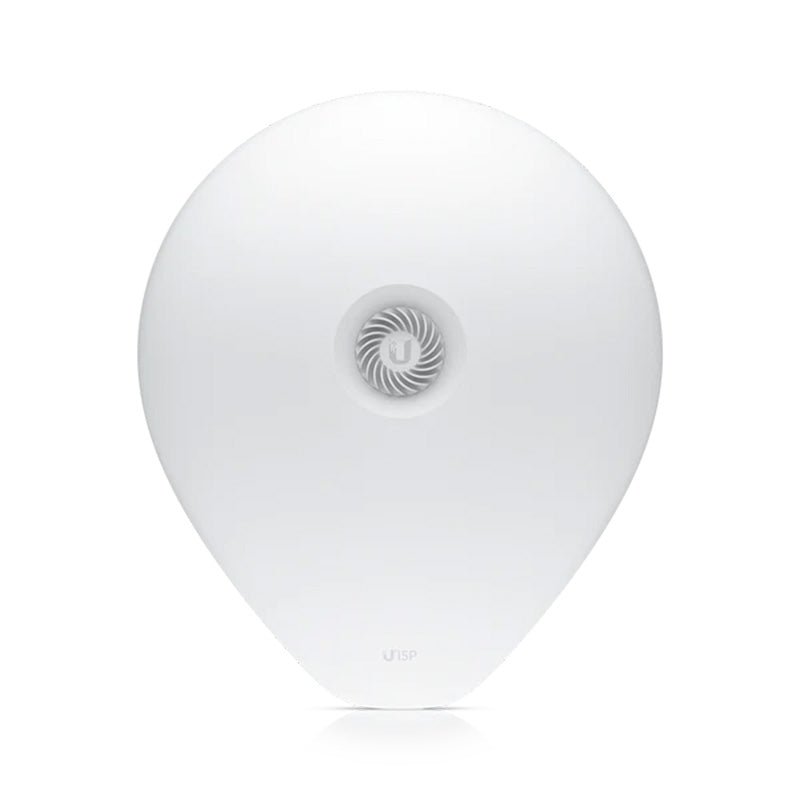

Link distant sites with the Ubiquiti UniFi UISP airFiber 60 XG Bridge (AF60-XG-US), a multi-gigabit 60 GHz bridge designed for ranges exceeding 4 km. Delivering up to 6 Gbps throughput with channel bonding, this device features SFP+ support, a 5 GHz backup radio, and GPS synchronization, all housed in a robust, weatherproof UV-stabilized polycarbonate and steel enclosure.
Specification | Details |
---|---|
Model | AF60-XG-US |
Dimensions | 779 x 664 x 383 mm (30.68 x 26.14 x 15.06") |
Weight (Without Mount) | 8.6 kg (19 lb) |
Weight (With Mount) | 13 kg (28.7 lb) |
Enclosure Material | UV stabilized polycarbonate, steel |
Mount Material | Galvanized steel |
Mounting | Precision alignment kit (included); Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15") |
Wind Loading | 422 N at 200 km/h (94.86 lbf at 125 mph) |
Processor | Quad-Core ARM® Cortex® A72 at 1.6 GHz |
Memory | 2 GB DDR4 |
Networking Interface | (1) GbE RJ45 port; (1) 1/10G SFP+ port |
Max. Power Consumption | 31.2W |
Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
Power Supply | 48V DC, 0.65A Gigabit PoE adapter (Included) |
Supported Voltage Range | 44–54V DC; 22–27V DC |
GPS | Yes |
RF Connections | Internal |
Button | Factory reset |
Ambient Operating Temperature | -40 to 55° C (-40 to 131° F) |
Ambient Operating Humidity | 5 to 95% noncondensing |
Certifications | FCC, IC, CE, terragraph |
Operating Mode | PtP only |
Services | UISP, ping watchdog, NTP client, system log |
Utilities | Antenna alignment tool, discovery utility, ping, speed test |
Management Application | UISP web: Version 1.4.3 and later; UISP iOS™ and Android™: Version 2.19 and later |
Max. Throughput (5 GHz) | 866.6 Mbps |
Max. Throughput (60 GHz) | 3.8 Gbps / 6 Gbps (with channel bonding enabled) |
Max. Range | 4 km |
Encryption | WPA2-PSK (AES) |
Operating Frequency (60 GHz) | 57–66 GHz* (*Depends on regulatory region) |
Channel Bandwidth (60 GHz) | 2160 MHz / 4320 MHz (with channel bonding enabled) |
Operating Channels (60 GHz) | 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz* (*Depends on channel bandwidth) |
Polarization (60 GHz) | Vertically linear |
Beamwidth (60 GHz) | Azimuth: 3 dB 1.6°; Elevation: 3 dB 1.6° |
Operating Frequency (5 GHz Backup, US/CA) | U-NII-1: 5150 - 5250 MHz; U-NII-3: 5725 - 5850 MHz |
Operating Frequency (5 GHz Backup, Worldwide) | 5150–5875 MHz* (*Depends on regulatory region) |
Channel Bandwidth (5 GHz Backup) | 20/40/80 MHz |
Polarization (5 GHz Backup) | Dual-linear |
Beamwidth (5 GHz Backup) | Azimuth: 3 dB 5°; Elevation: 3 dB 5° |
LEDs (Power) | Flashing white: bootup in progress; White: not connected to UISP™ console; Blue: connected to UISP console |
LEDs (Ethernet) | Flashing blue: Ethernet activity |
LEDs (GPS) | Blue: receiving at least (4) GPS satellite signals |
LEDs (60 GHz) | Blue: active connection |
LEDs (5 GHz) | Blue: active connection |
