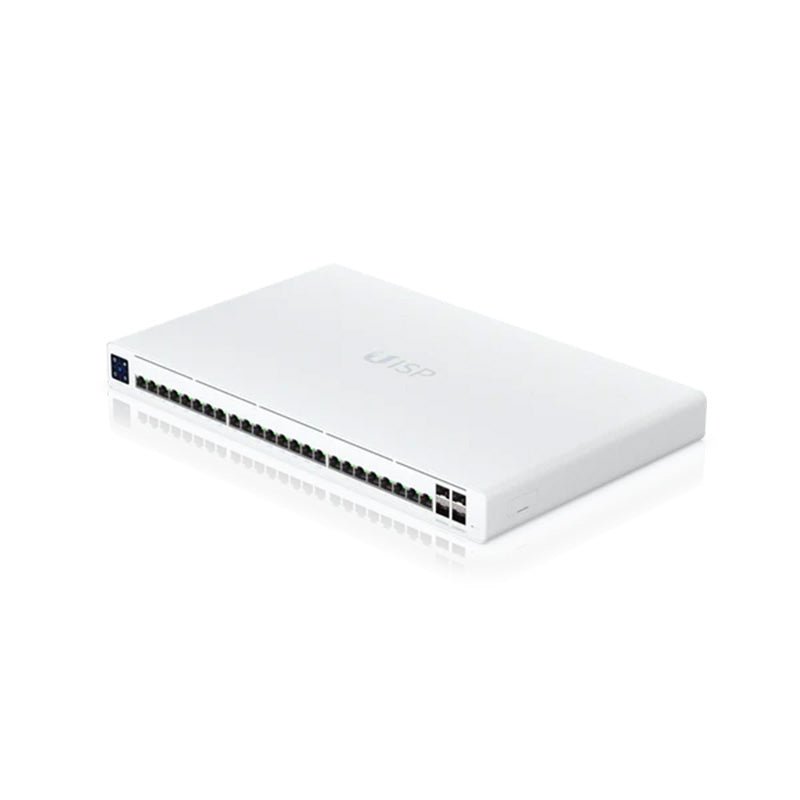

Ubiquiti UISP Switch Pro

PoE switch with (24) GbE RJ45 ports, including (16) with 27V passive PoE output and (4) 10G SFP+ ports for high-speed fiber uplinks. Ideal for WISP deployments, the UISP® Switch...
Read More
$759.99
$759.99
Sous-total: $759.99
Please hurry! Only 3 left in stock

Free Shipping

Estimated to be delivered within 3-4 days

Free Returns

Free return in 90 days

Ubiquiti UISP Switch Pro

Ubiquiti UISP Switch Pro

$759.99

Ubiquiti UISP Switch Pro

$759.99

PoE switch with (24) GbE RJ45 ports, including (16) with 27V passive PoE output and (4) 10G SFP+ ports for high-speed fiber uplinks.

Ideal for WISP deployments, the UISP® Switch Pro (UISP S Pro) is a PoE switch with (24) GbE RJ45 ports, including (16) with 27V passive PoE output and (4) 10G SFP+ ports for high-speed fiber uplinks. The UISP S Pro has a robust 220W PoE supply and provides 2 or 4-pair mode functionality to ensure reliable support for your radio devices. Additionally, the rack-mountable UISP S Pro features a 1.3" LCM color touchscreen that concisely presents key device and network status information. The UISP S Pro can be set up in minutes and fully managed with the UISP application, a centralized platform where you can monitor and configure all of your UISP devices.

Mechanical
Dimensions 442.4 x 267.5 x 43.7 mm (17.42 x 10.53 x 1.72")
Weight 3.99 kg (8.8 lb)
Enclosure materials SGCC steel, polycarbonate/acrylonitrile butadiene styrene
Hardware
Total non-blocking throughput 64 Gbps
Switching capacity 128 Gbps
Forwarding rate 95.23 Mpps
Networking interfaces (24) 10/100/1,000 MbE RJ45 LAN ports
(4) 1/10Gbps SFP+ ports
Management interfaces Ethernet In-band
Bluetooth BLE
LCM display (1) 1.3" touchscreen
Power method (1) Universal AC input, 100-240VAC, 4.4A Max, 50/60 Hz
(1) Power TransPort DC input 27VDC, 9.3A
Power supply AC/DC, Internal, 250W
Supported voltage range 100 to 240VAC
Max. power consumption 30W (excludes PoE output)
ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV
Operating temperature -10 to 50° C (14 to 122° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
PoE
PoE interfaces (16) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 16
Total available PoE 220W
Passive PoE max wattage per port 30W/27VDC
Passive PoE voltage range 27VDC
LEDs
RJ45 data ports PoE; Speed/link/activity
SFP+ data ports Speed/link/activity
