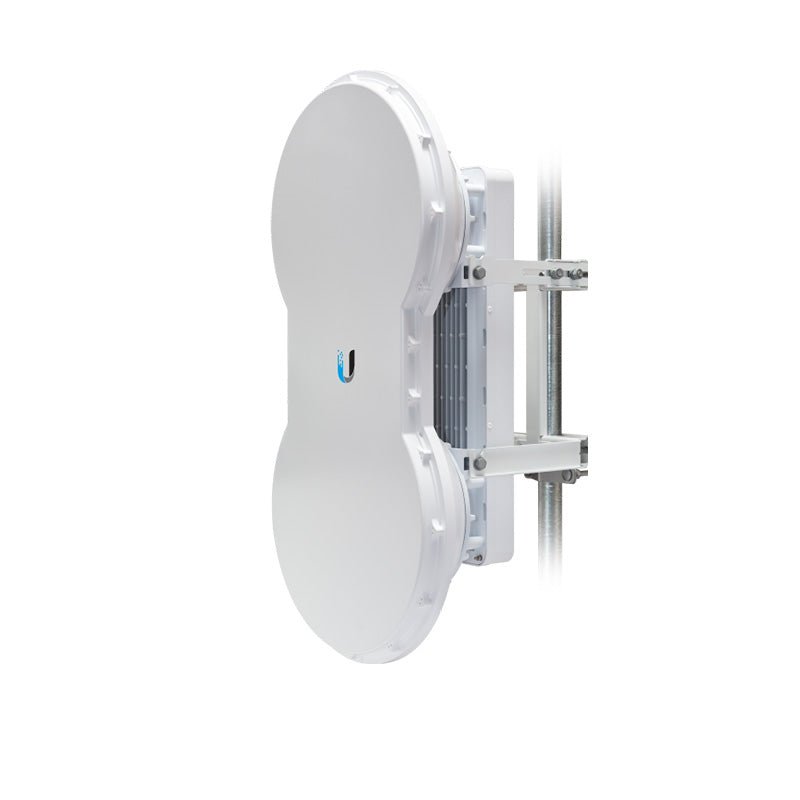

Ubiquiti UISP airFiber 5 Mid-Band Bridge (AF-5)

Compact, wireless point-to-point mid-band bridge with a 1.2+ Gbps throughput rate. 5 GHz, mid-band 100+ km link range 1.2+ Gbps throughput Separate integrated TX and RX antennas Integrated GPS sync...
Read More
$1,466.85
$1,466.85
Sous-total: $1,466.85
Please hurry! Only 1 left in stock

Free Shipping

Estimated to be delivered within 3-4 days

Free Returns

Free return in 90 days

Ubiquiti - Ubiquiti UISP airFiber 5 Mid - Band Bridge (AF - 5)

Ubiquiti UISP airFiber 5 Mid-Band Bridge (AF-5)

$1,466.85

Ubiquiti UISP airFiber 5 Mid-Band Bridge (AF-5)

$1,466.85
Compact, wireless point-to-point mid-band bridge with a 1.2+ Gbps throughput rate.

5 GHz, mid-band 100+ km link range

1.2+ Gbps throughput

Separate integrated TX and RX antennas

Integrated GPS sync

1+ Mpps processing

Mechanical
Dimensions 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08"
Weight 16 kg (35.27 lb)
Mounting Pole mount kit (Included)
Wind Loading 863 N @ 200 km/h (194 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Hardware
Networking interface (1) 10/100/1000 MbE port
(1) 10/100 MbE port
Auxiliary Port (1) RJ-12, alignment tone port
Power method Passive PoE
Power supply 50V, 1.2A PoE GigE adapter (Included)
Supported voltage range +42—58V DC
Max. power consumption 40 W
Operating temperature -40 to 55°C (-40 to 131° F)
Certifications CE, FCC, IC
System
Max. throughput 1.2+ Gbps
Max. range* 100+ km
*Dependent on regulatory region.
Packets per second 1+ million
Encryption 128-Bit AES
Uplink/Downlink Ratio 50% Fixed
Radio Frame Synchronization GPS
RF
Operating frequency 5470 - 5600 MHz, 5650 - 5850 MHz (FCC 15.247, 15.407, IC RSS 210)
5470 - 5875 MHz (ETSI EN 301 893, EN 302 502)
5470 - 5950 MHz (Other Regions)
GPS GPS Clock Synchronization
EIRP ~50 dBm
*Dependent on regulatory region and frequency band.
Frequency accuracy ±2.5 ppm without GPS synchronization
±0.2 ppm with GPS synchronization
Channel bandwidth 10/20/30/40/50 MHz
Modulation 1024QAM MIMO
256QAM MIMO
64QAM MIMO
16QAM MIMO
QPSK MIMO
½ Rate QPSK xRT
¼ Rate QPSK xRT
Gain
TX
RX

23 dBi
23 dBi
Beamwidth
Front-to-back ratio 70 dB
Polarization Dual-slant
Cross-polarity isolation > 28 dB
