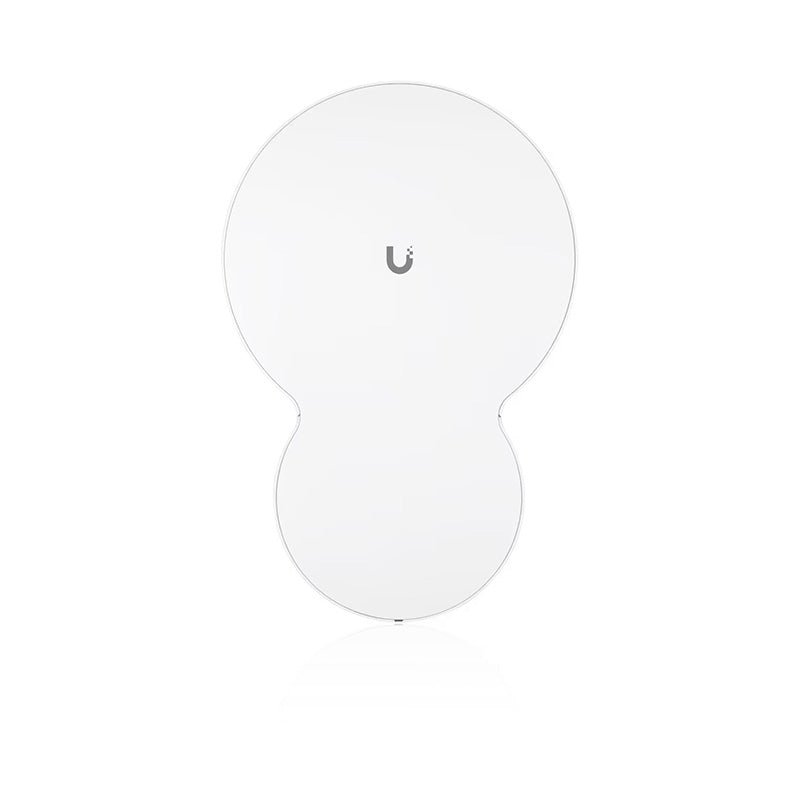

Ubiquiti - Ubiquiti UISP airFiber 24 GHz Bridge (AF - 24)
Ubiquiti - Ubiquiti UISP airFiber 24 GHz Bridge (AF - 24)
14 customers are viewing this product

Ubiquiti UISP airFiber 24 GHz Bridge (AF-24)

Mechanical Dimensions 649 x 426 x 303 mm (25.55 x 16.77 x 11.93") Weight 10.5 kg (23.15 lb) Mounting Pole mount kit (Included) Wind loading 480 N @ 200 km/h...
Read More
$2,095.51
$2,095.51
Sous-total: $2,095.51
Please hurry! Only 1 left in stock

Free Shipping

Estimated to be delivered within 3-4 days

Free Returns

Free return in 90 days

Ubiquiti - Ubiquiti UISP airFiber 24 GHz Bridge (AF - 24)

Ubiquiti UISP airFiber 24 GHz Bridge (AF-24)

$2,095.51

Ubiquiti UISP airFiber 24 GHz Bridge (AF-24)

$2,095.51
Mechanical
Dimensions 649 x 426 x 303 mm (25.55 x 16.77 x 11.93")
Weight 10.5 kg (23.15 lb)
Mounting Pole mount kit (Included)
Wind loading 480 N @ 200 km/h (108 lbf @ 125 mph)
Wind survivability 200 km/h (125 mph)
Hardware
Networking interface (1) 10/100/1000 MbE port
(1) 10/100 MbE port
Auxiliary port (1) RJ-12, alignment tone port
Power method Passive PoE
Power supply 50V, 1.2A PoE GigE adapter (Included)
Supported voltage range 42—58V DC
Max. power consumption 50 W
Operating frequency 24.05 – 24.25 GHz
Operating temperature -40 to 55° C (-40 to 131° F)
Certifications CE, FCC, IC
System
Max. throughput 1.5+ Gbps
Ma. range 13+ km
Packets per second 1+ million
Encryption 128-bit AES
Uplink/Downlink ratio 50% fixed
RF
GPS GPS clock synchronization
EIRP ~33 dBm (FCC/IC)
~20 dBm (CE)
~40 dBm (Other Regions)
Frequency accuracy ±2.5 ppm without GPS synchronization
±0.2 ppm with GPS synchronization
Channel bandwidth 100 MHz
Operating frequency 24.05 – 24.25 GHz
Operating channels 24.1 GHz, 24.2 GHz
Modulation 64QAM MIMO
16QAM MIMO
QPSK MIMO
QPSK SISO
¼x QPSK SISO
Gain
TX
RX

33 dBi
38 dBi
Beamwidth < 3.5°
Front-to-back ratio 70 dB
Polarization Dual-slant
Cross-polarity Iiolation > 28 dB
