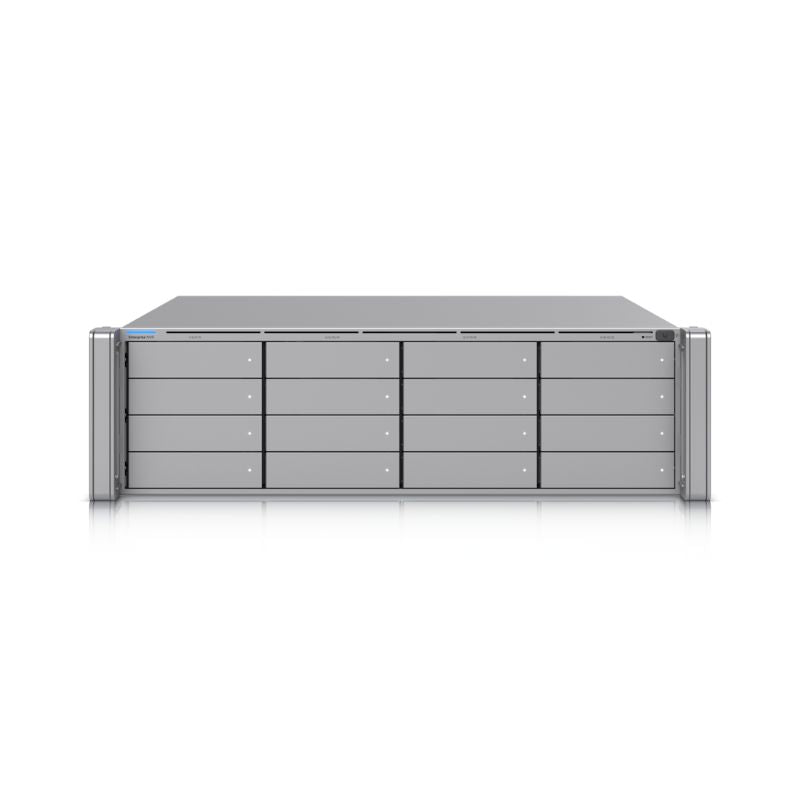

Elevate your surveillance capabilities with the Ubiquiti Enterprise Network Video Recorder (ENVR), a 3U NVR engineered for large-scale video management. Featuring (16) 2.5/3.5” drive bays, it supports up to 70 4K cameras or 210 Full HD cameras, with high-speed 10G SFP+ uplinks, RAID storage, and redundant hot-swap PSUs for enterprise-grade reliability.
Specification | Details |
---|---|
Dimensions | 481.4 x 480 x 132 mm (19 x 18.9 x 5.2") |
Weight | 16.6 kg (36.6 lb) |
Enclosure Material | SGCC steel |
Mount Material | Aluminum |
Slide Rails Support | 482.6 mm (19") four-post racks, square holes (9.5 x 9.5 mm), post depths 650–1000 mm (25.6–39.4”) |
Management Interface | Ethernet In-Band |
Networking Interface | (1) 1/2.5/5/10 GbE RJ45 port, (2) 1/10 GbE SFP+ ports |
Power Method | (2) AC input, 100-240V, 7A Max., 50/60Hz (redundant, hot-swappable) |
Power Supply | Hot-swappable 550W CRPS |
Supported Voltage Range | 100—240V AC |
Max. Power Consumption | 410W |
Max. Power Budget for Drives | 310W |
ESD/EMP Protection | Air: ± 12kV, Contact: ± 8kV |
Button | Factory reset |
Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
Ambient Operating Humidity | 5 to 95% noncondensing |
Certifications | FCC, CE, IC |
Capacity (HD Cameras) | 210 |
Capacity (2K Cameras) | 140 |
Capacity (4K Cameras) | 70 |
LEDs (System) | (1) Power: blue/white (Flashing white: bootup; Flashing blue: firmware upgrading; Steady white: factory defaults, awaiting adoption; Steady blue: adopted) |
LEDs (Ethernet) | Green: link/activity |
LEDs (SFP+) | Green: link/activity |
LEDs (HDD) | White: disk detected; Amber: disk error |
