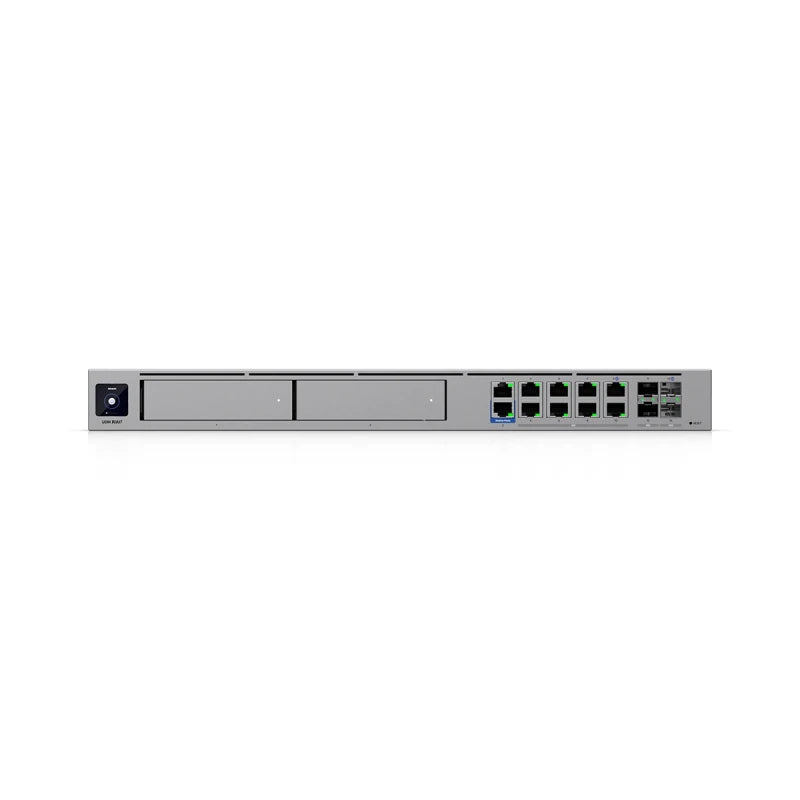

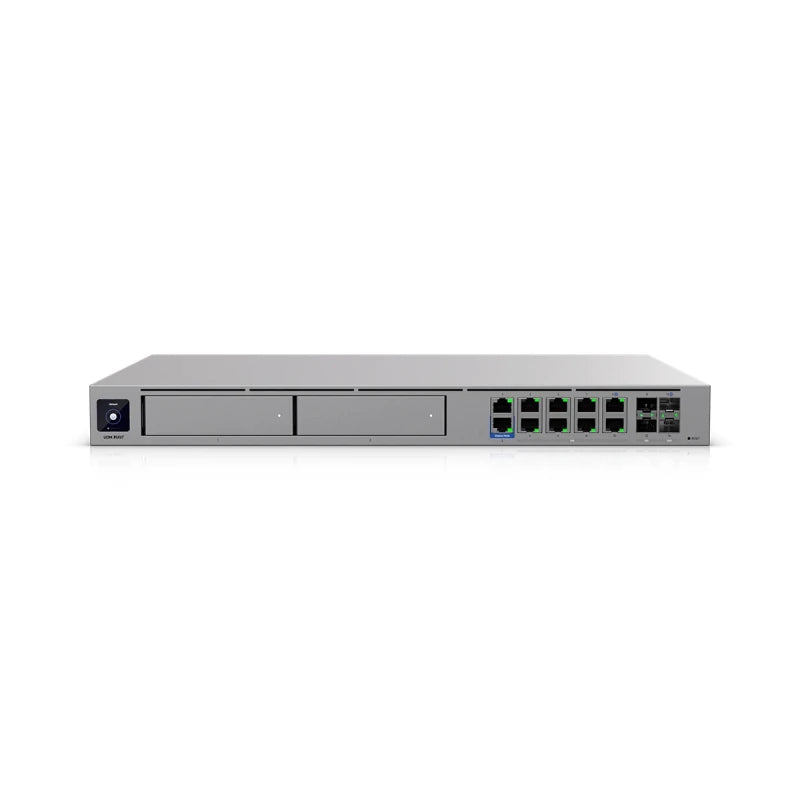

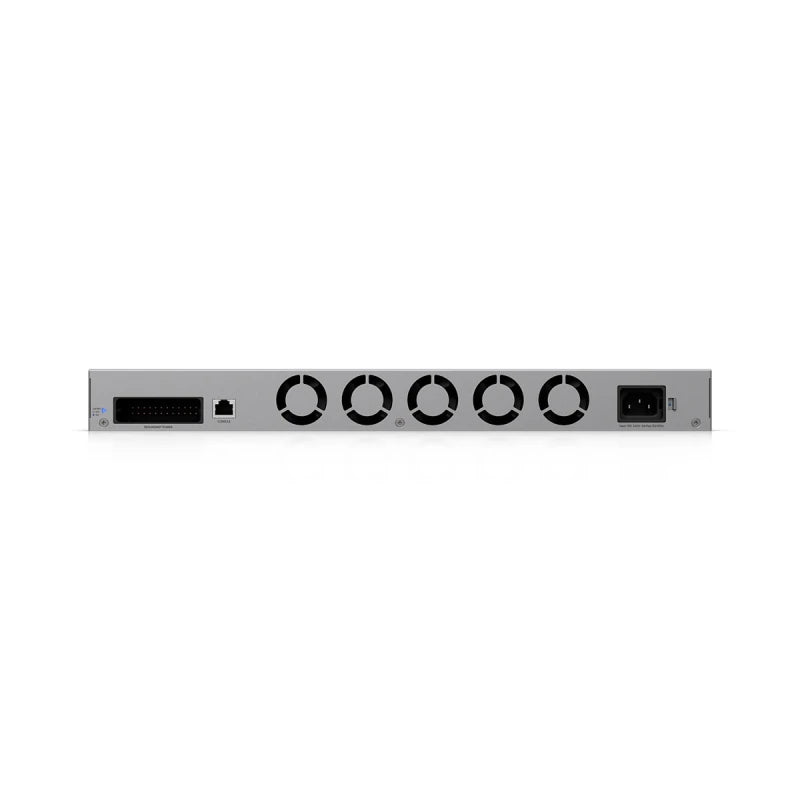

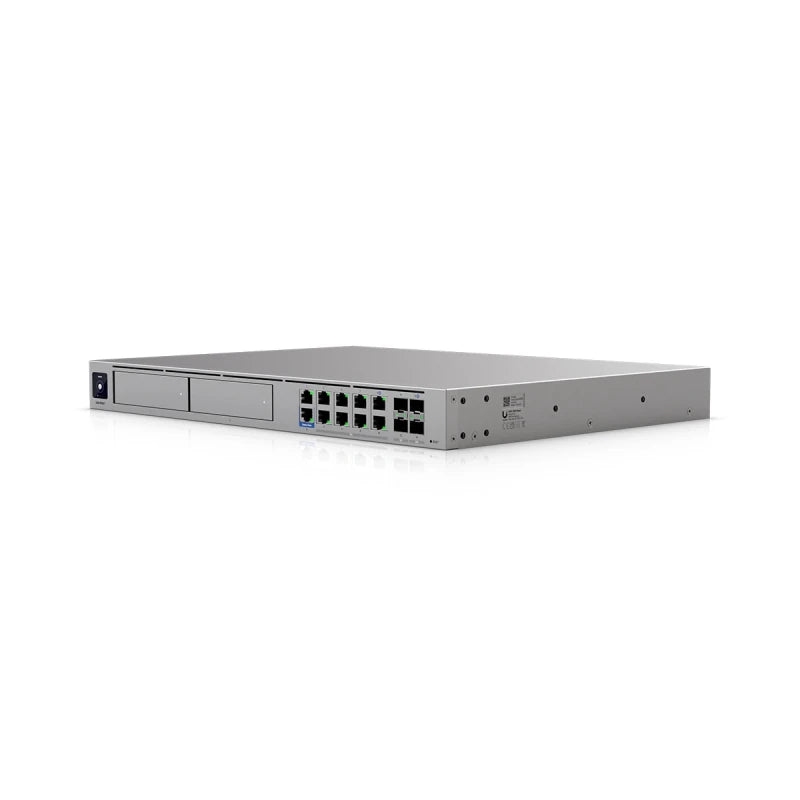

Ubiquiti Dream Machine Beast (UDM-Beast) – 25G Cloud Gateway with 7,500+ Client Capacity

The Ubiquiti Dream Machine Beast (UDM-Beast) is a hyperscale-class Cloud Gateway engineered for enterprise and large-scale network deployments. Delivering up to 25 Gbps IDS/IPS throughput and supporting over 7,500 concurrent users, it provides unmatched performance, scalability, and security within the UniFi ecosystem.

Designed as a complete all-in-one solution, the UDM-Beast integrates the full UniFi Application Suite, enabling centralized management of networking, video surveillance, access control, VoIP, and IoT devices—all from a single powerful platform.

Key Features

• Hyperscale Performance: Up to 25 Gbps IDS/IPS throughput
• Massive Capacity: Supports 7,500+ clients and 750+ UniFi devices
• Full UniFi Suite: Network, Protect, Access, Talk, and Connect applications
• High-Density Camera Support: Up to 100 HD, 60 2K, or 40 4K cameras
• Advanced Networking: Multi-WAN, load balancing, and policy-based routing
• Enterprise Security: Layer 7 firewall, DPI, IPS/IDS, and content filtering
• High Availability: VRRP Shadow Mode failover and power redundancy
• Flexible Storage: Built-in 128GB SSD + dual 3.5" NVR drive bays

Connectivity & Ports

• WAN Ports: Up to 8 total WAN connections
• High-Speed Ports:
  • (2) 25G SFP28 ports
  • (2) 10G SFP+ ports
  • (8) 10 GbE RJ45 ports
  • (2) 1 GbE RJ45 ports
• Default WAN: 25G SFP28 + 10 GbE RJ45
• Console Port: Dedicated management console

Security & Networking

• Advanced Firewall: Stateful and Layer 7 application-aware firewall
• Intrusion Prevention: 55,000+ signatures with CyberSecure
• VPN Support: IPsec, OpenVPN, WireGuard, L2TP, and UniFi Teleport
• Dynamic Routing: OSPF and BGP support
• SD-WAN: License-free advanced WAN management
• QoS & Traffic Management: Advanced prioritization and analytics

Hardware & Performance

• Processor: Octa-core ARM® v9 at 2.1 GHz
• Memory: 16 GB RAM
• Storage: 128 GB integrated SSD + (2) 3.5" HDD bays
• Max Power Consumption: 100W
• Power Supply: Internal AC/DC with DC backup support
• Cooling & Efficiency: Optimized thermal design with 342 BTU/hr heat dissipation

Technical Specifications

The Ubiquiti Dream Machine Beast sets a new standard for enterprise networking, combining extreme performance, advanced security, and full-stack UniFi management into a single, powerful platform.
