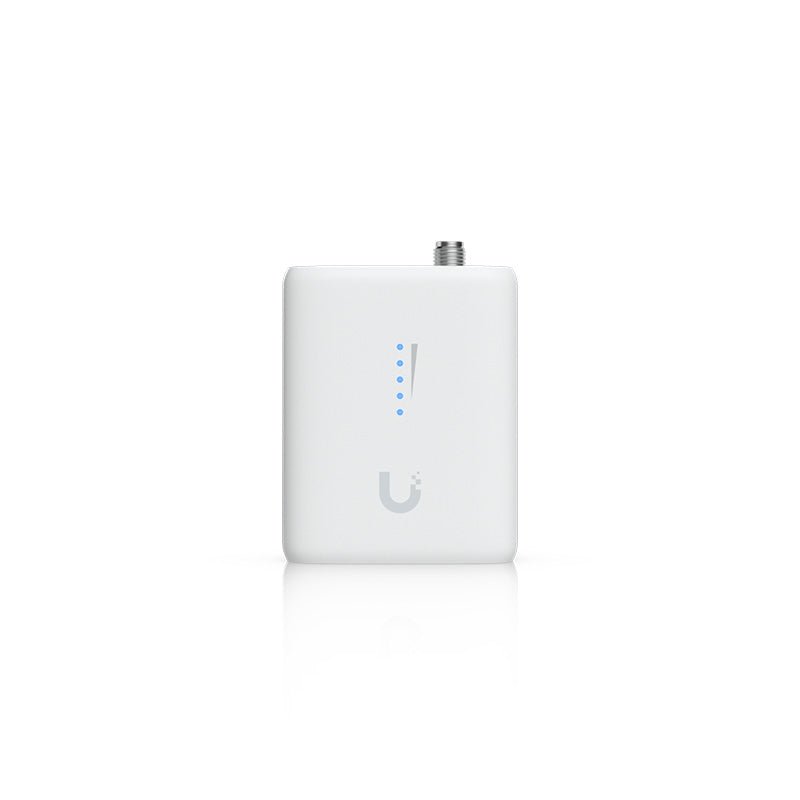

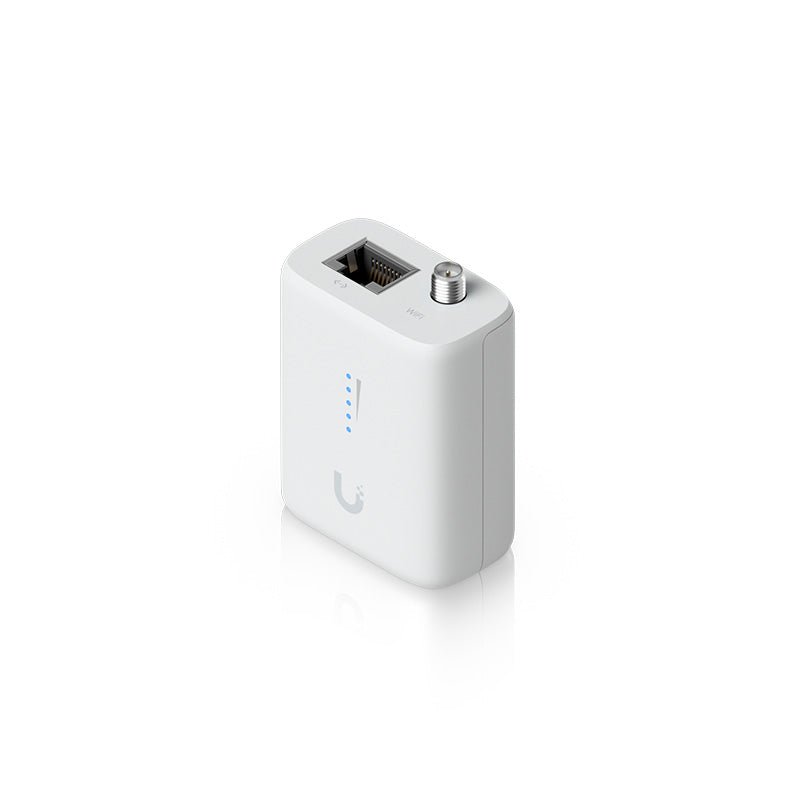

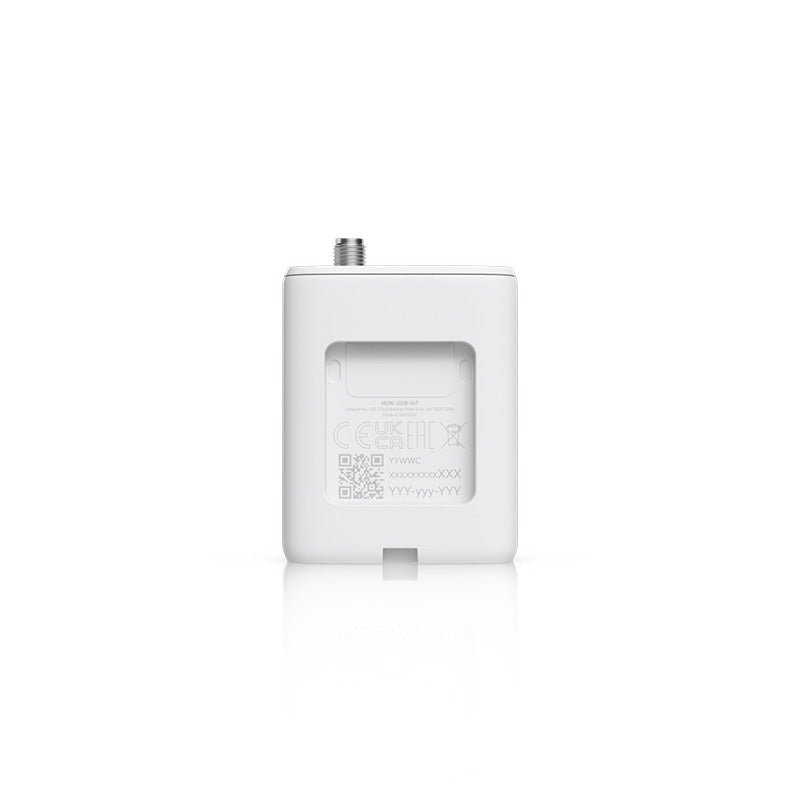

The Ubiquiti Device Bridge IoT (UDB-IoT) is an ultra-compact wireless bridge built for reliably connecting IoT devices over WiFi. It features integrated UniFi WiFi Auto-Link, flexible mounting options, and can be powered via USB Type-C or a 4-pin DC socket—making it an ideal fit for tight installs and industrial-style deployments.
Designed for quick placement on walls or DIN rails, the UDB-IoT delivers dependable 2.4 GHz connectivity with 2x2 MIMO performance and always-on WPA2 AES security, while offering both internal and external antenna support.
| Specification | Details |
|---|---|
| Model | UDB-IoT |
| Dimensions (Device) | 63 x 44.5 x 25.5 mm (2.5 x 1.8 x 1") |
| Dimensions (With External Antenna) | 89 x 44.5 x 25.5 mm (3.5 x 1.8 x 1") |
| Weight (Device) | 45 g (1.6 oz) |
| Weight (With External Antenna) | 53 g (1.9 oz) |
| WiFi Standard | WiFi 4 (802.11n) |
| Spatial Streams | 2 |
| MIMO | 2 x 2 (2.4 GHz) |
| Max Data Rate | 300 Mbps (2.4 GHz, BW40) |
| Antenna Gain | Internal: 4 dBi / External omni: 3 dBi |
| Max TX Power | 20 dBm (2.4 GHz) |
| Wireless Security | WPA2 AES (Always On) |

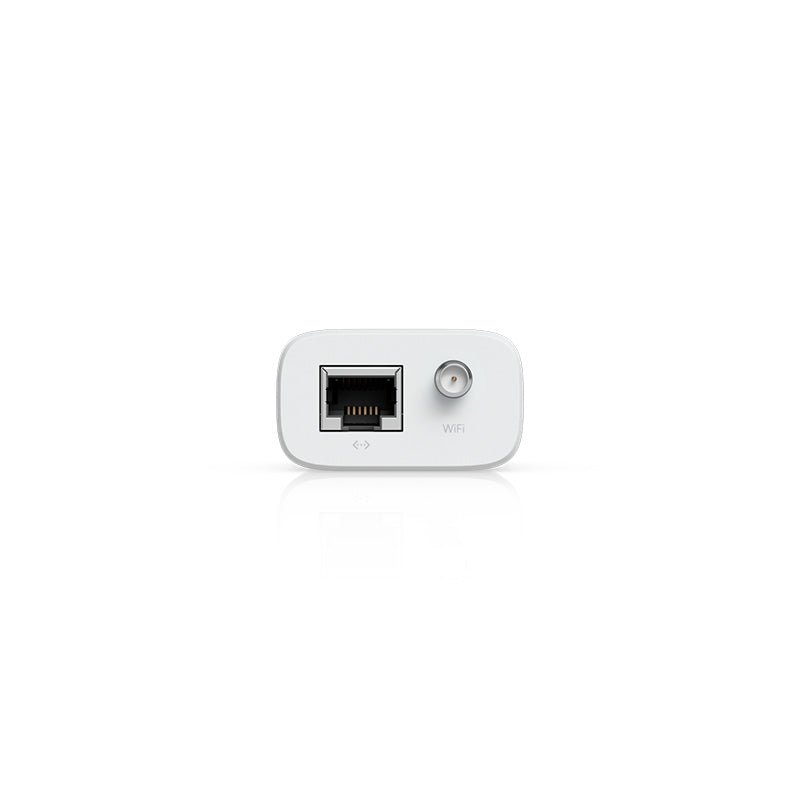

| Networking Interface | (1) 10/100M RJ45 port |

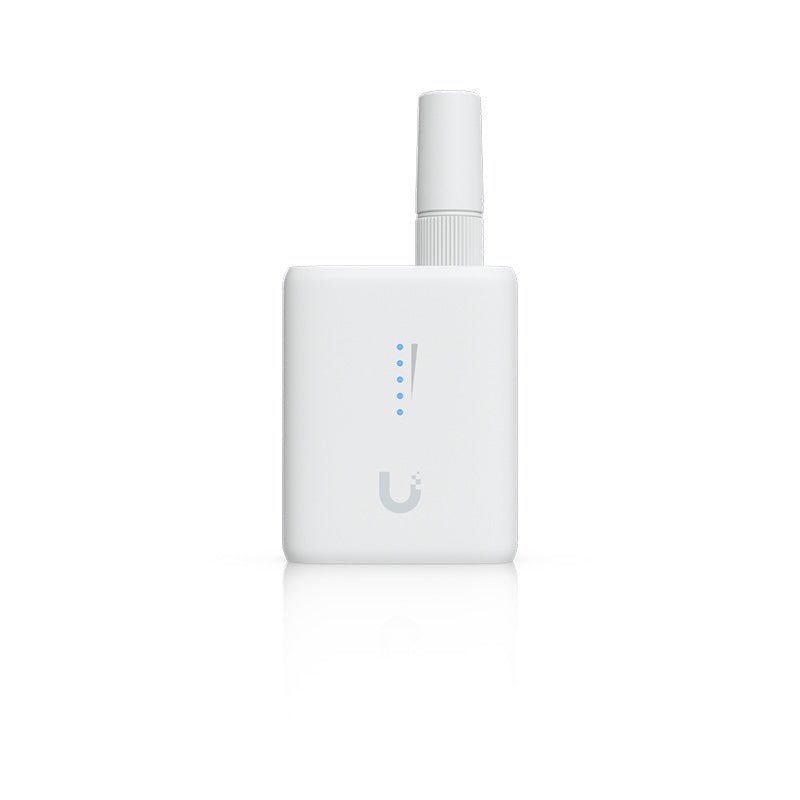

| Antennas | (1) Internal antenna, (1) RP-SMA for external omni-antenna |
| Power Method | USB Type-C (5V DC, 1A) / 4-pin DC (9–30V DC) |
| Max Power Consumption | 2.3W |
| Mounting Locations | Wall, DIN rail |
| Mounting | Included mount |
| Enclosure Material | Polycarbonate |
| Button | (1) Factory reset |
| LEDs | (4) Blue: signal / (1) White/blue: indicator |
| Certifications | CE, FCC, IC |
| Operating Temperature | -10 to 50° C (14 to 140° F) |
| Operating Humidity | 5 to 95% noncondensing |
The UDB-IoT combines compact sizing, flexible power, and straightforward mounting to deliver a clean, reliable wireless bridge for IoT deployments—ideal for connecting wired endpoints through UniFi-managed WiFi.
