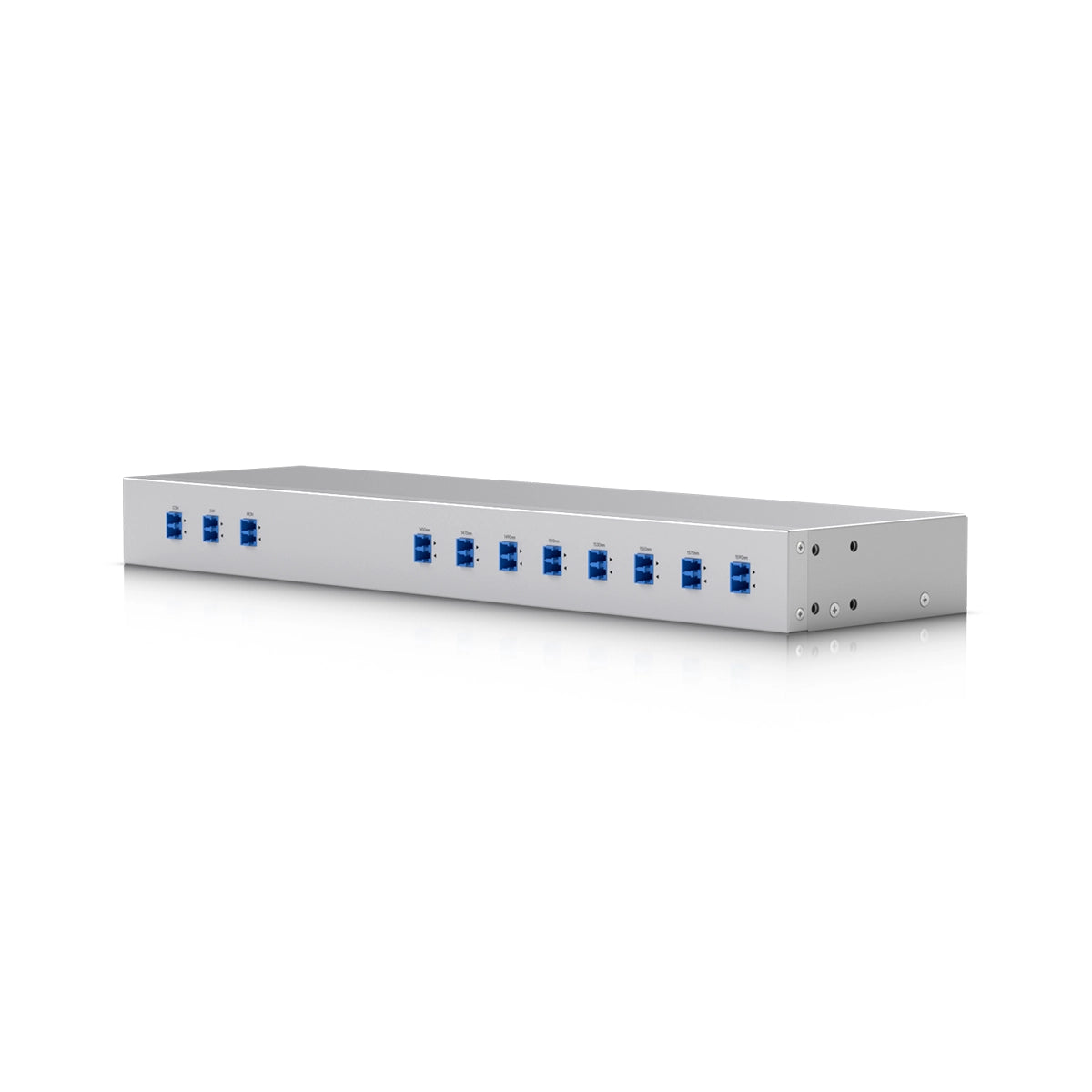

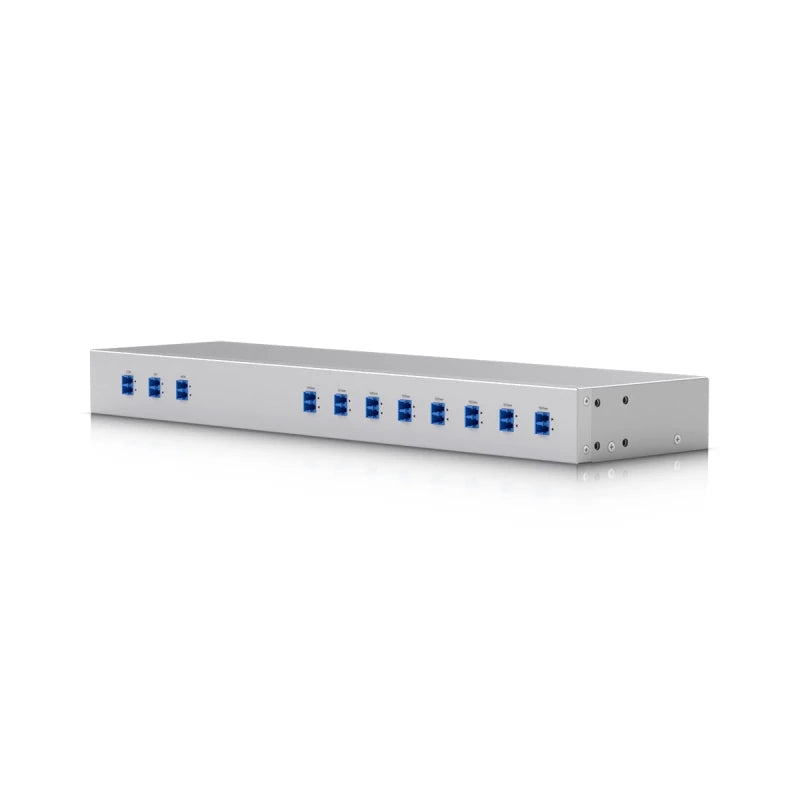

Ubiquiti CWDM Mux Demux 8 (UACC-CWDM-8) – Rack-Mount 8-Channel CWDM Multiplexer with Expansion Port

The Ubiquiti CWDM Mux Demux 8 (UACC-CWDM-8) is a professional-grade 8-channel CWDM (Coarse Wavelength Division Multiplexing) multiplexer/demultiplexer engineered to significantly expand the capacity of your existing single-mode fiber infrastructure. By combining eight independent optical wavelengths onto a single fiber pair — and offering an expansion port to scale beyond that — this passive optical device delivers a powerful and cost-efficient solution for modern high-bandwidth network deployments.

Housed in a compact 1U rack-mount SGCC steel enclosure, the CWDM Mux Demux 8 features eight 1450–1590 nm channel ports, a duplex LC UPC communication port for pairing with a second unit, a dedicated monitor port, and a unique expansion port that allows direct linking to a CWDM Mux Demux 4 (UACC-CWDM-4) to add more channels as your network grows.

Key Features

• 8-Channel CWDM Mux/Demux: Multiplex 8 independent optical channels over a single fiber pair
• Wavelength Coverage: 1450 / 1470 / 1490 / 1510 / 1530 / 1550 / 1570 / 1590 nm channel ports
• Duplex LC UPC Communication Port: Pair with another CWDM Mux Demux 8 via single-mode fiber
• Expansion Port for Scalability: Add a CWDM Mux Demux 4 to extend beyond 8 channels
• Dedicated Monitor Port: Real-time signal analysis with a power meter or optical spectrum analyzer
• Low Insertion Loss: Maximum <2.5 dB for reliable long-distance performance
• High Return Loss: Minimum 50 dB for excellent signal integrity
• Superior Channel Isolation: Adjacent channels up to 30 dB, non-adjacent channels 40 dB minimum
• Compact 1U Rack-Mount Form Factor: Slim design fits any standard networking rack
• Rugged SGCC Steel Enclosure: Built for demanding data center and telecom environments
• Wide Operating Temperature Range: -30°C to 75°C for versatile installation scenarios

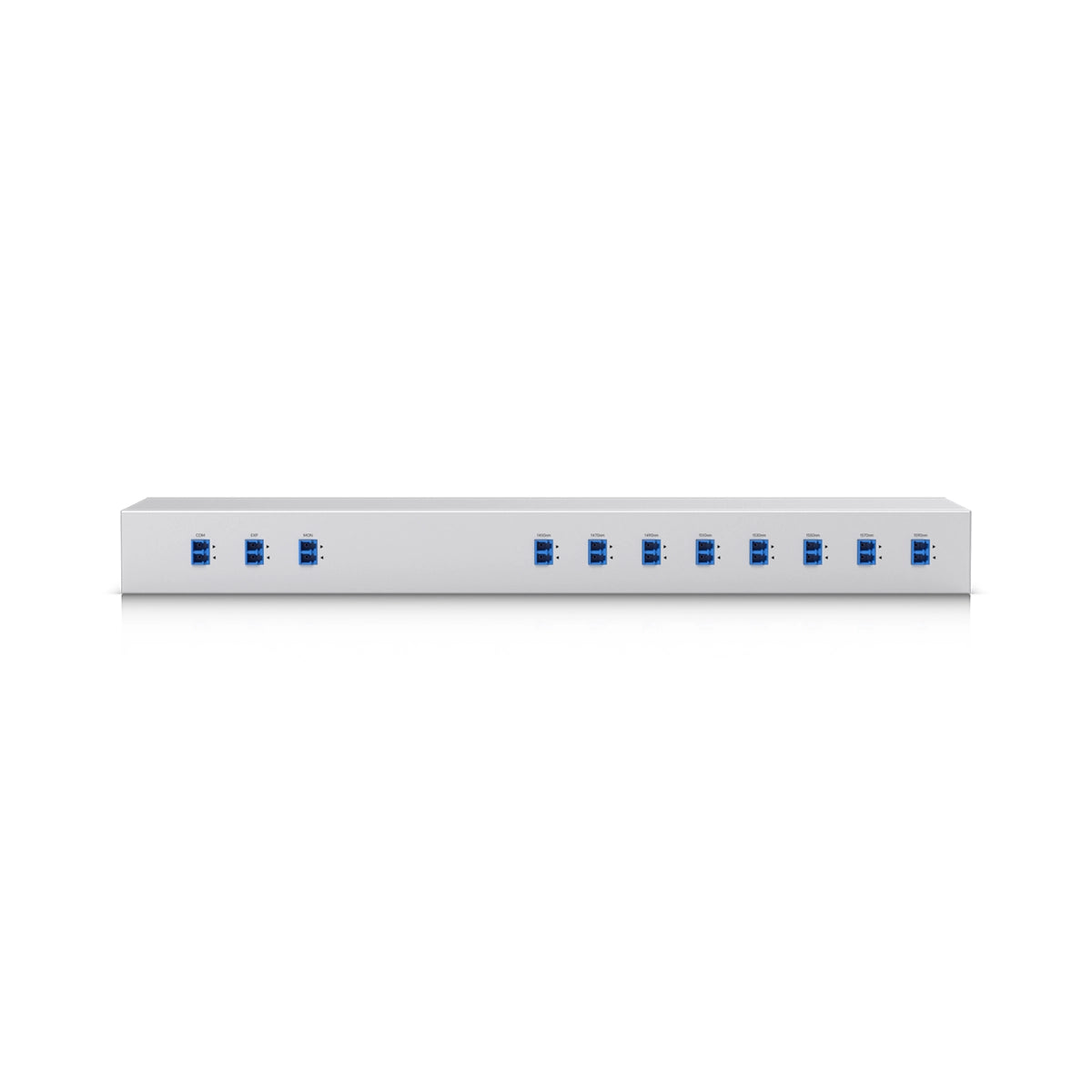

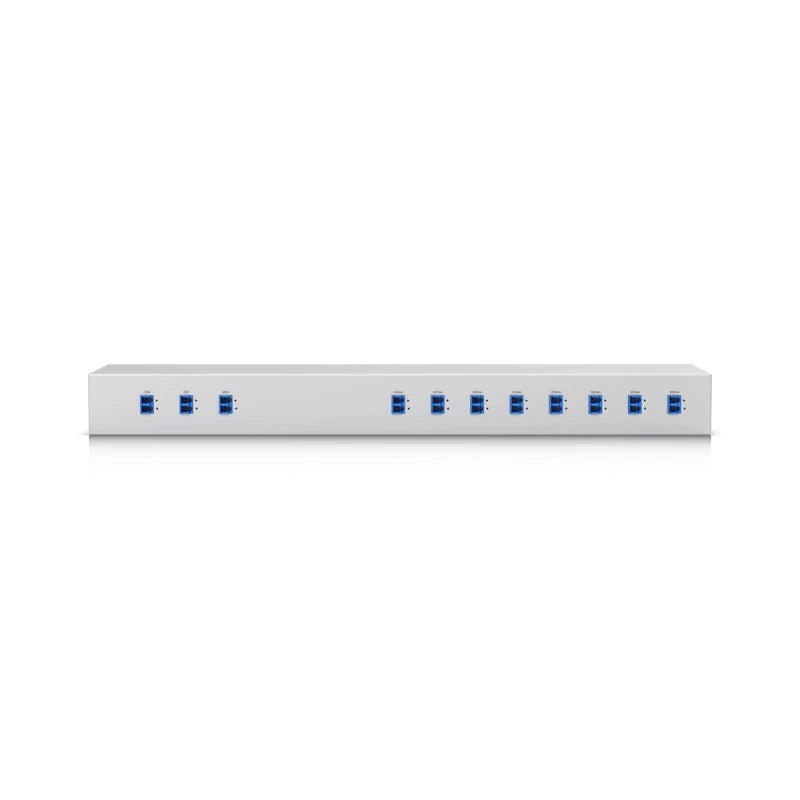

Port Layout

• (8) Channel Ports: 1450 / 1470 / 1490 / 1510 / 1530 / 1550 / 1570 / 1590 nm (LC/UPC)
• (1) COM Port: Duplex LC/UPC (black pigtail) for interconnection with another CWDM Mux Demux 8
• (1) MON Port: Duplex LC/UPC for optical monitoring and diagnostics
• (1) EXP Port: Duplex LC/UPC for linking with a CWDM Mux Demux 4 for extended channel capacity

Optical Performance

• Channel Center Wavelengths: 1450 / 1470 / 1490 / 1510 / 1530 / 1550 / 1570 / 1590 nm
• Min. Channel Passband: ±6.5 nm
• Insertion Loss: <2.5 dB (Max.)
• Return Loss: 50 dB (Min.)
• Isolation: Adjacent Channel Max. 30 dB / Non-Adjacent Channel Min. 40 dB
• Max. Power Handling: 500 mW
• Max. Passband Ripple: 0.3 dB
• Max. Polarization Dependent Loss: 0.1 dB
• Max. Polarization Mode Dispersion: 0.1 ps
• Min. Directivity: 55 dB

Technical Specifications

The Ubiquiti CWDM Mux Demux 8 (UACC-CWDM-8) is a scalable, high-performance optical multiplexing solution designed for network operators, ISPs, and enterprise environments that need to unlock more capacity from existing fiber runs. With 8 channels, an expansion port for future growth, and rock-solid Ubiquiti build quality, it's an investment that pays off as your bandwidth demands scale.
