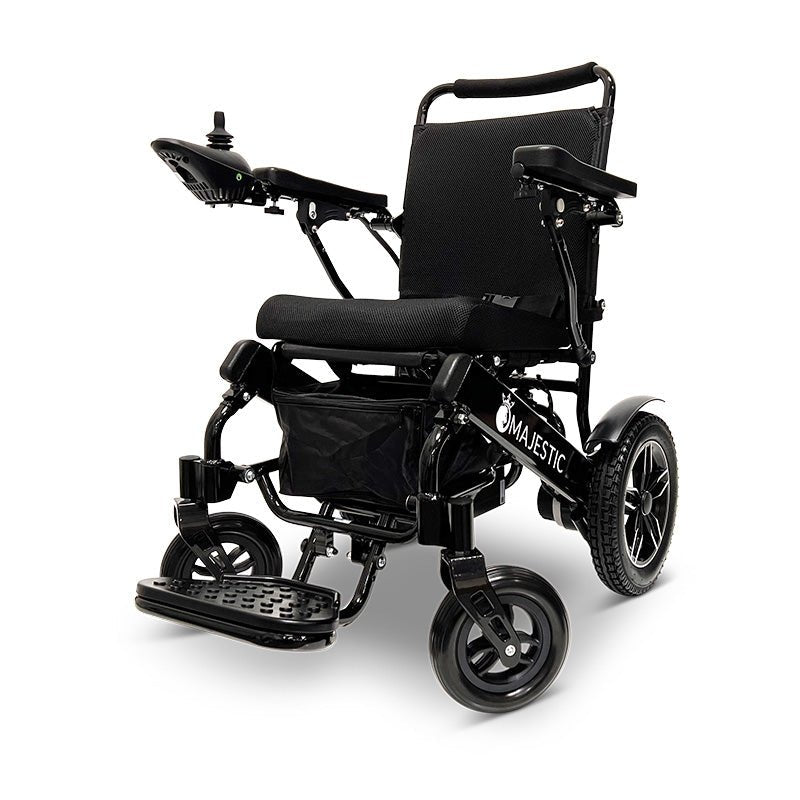

This series of electric wheelchairs are powered by Li-ion batteries and use DC motors. Users can control direction and adjust speed by using the joystick controls located on the arm. This wheelchair should be used at low speeds, good road conditions, and can handle a low slope.
Performance Parameters and Technical Specs, IQ-8000
Overall size: 38.5” x 23.5” x 37.5” (980x600x950mm)
Fold size: 31.5“ x 23.5” x 16” (800x600x400mm)
Seat size: 17.5” x 18” (445x460mm)
Net Weight: 55 lbs (25.5kgs)
Speed: (0.62 mph - 3.7 mph (1 - 6km/h) Max 4 mph
Seat height: 18.5” (460mm)
Armrest height: 11” (290mm)
Backrest height: 18.5” (460mm)
Max loading weight: 286 lbs (130 kgs)
Front wheel diameter: 8 inch (200 mm)
Rear wheel diameter: 12 inch (300 mm)
Battery: 12AH Li-ion / 20 AH Li-ion
Motor x 2 PCs: DC 24V / 250W X2
Battery charge: 100 - 240V, 50Hz, 1.5-5A
Control: 24V 50A
Max distance*: 10 miles (16 km) / 16 miles (25 km)
Degree of protection: IPX3
Max safe slope: 10°
Turning radius: ≤47 inches (≤1.2m)
Static stability: 9°
Reversing width: ≤59 inches (≤1.5m)
Climbing angle: 6°
Tire pressure: 2 kg f/㎡
Obstacle climbing: 2 inches (50mm)
* varies based on weight, incline, speed factors
